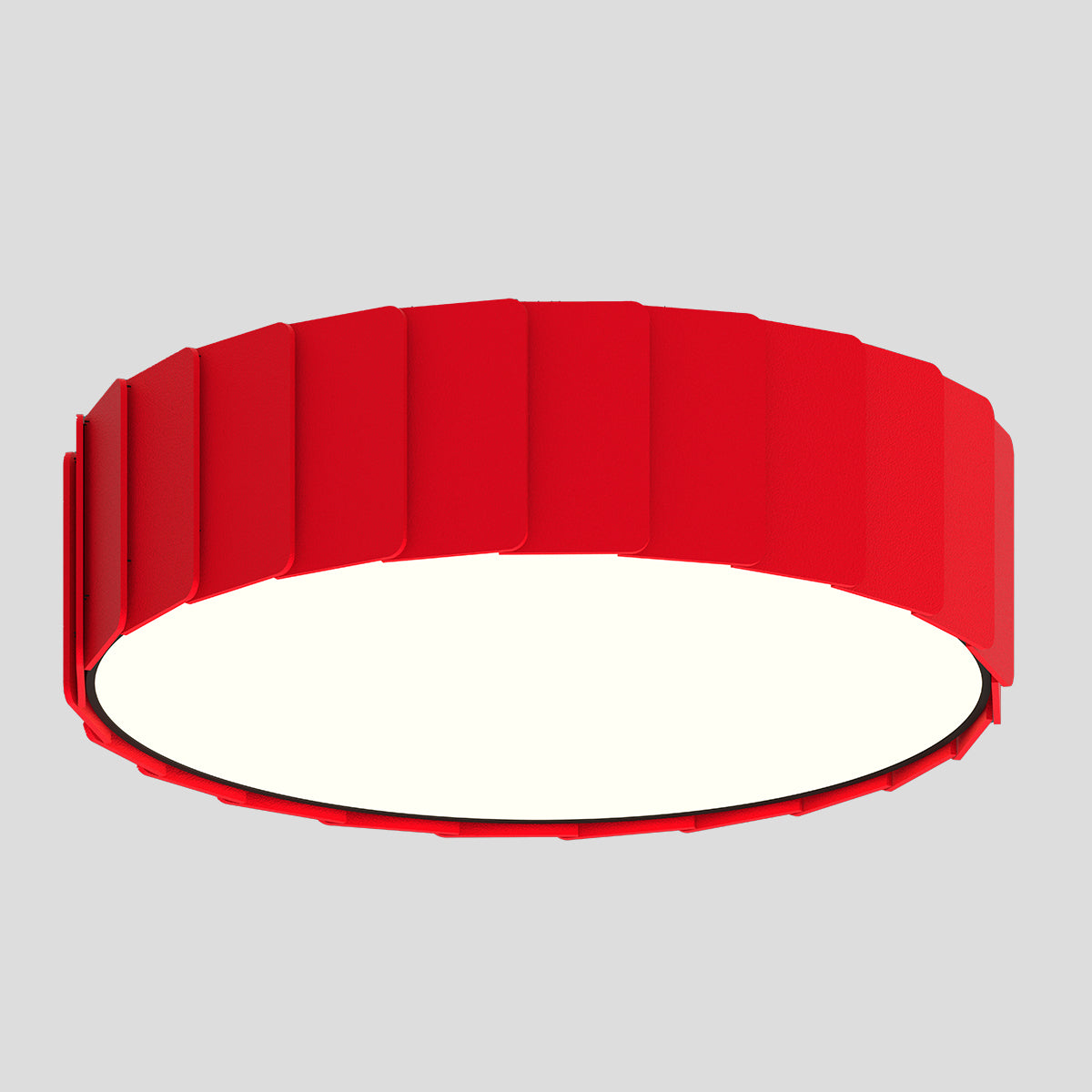

Louver Cloud Acoustic

Louver Cloud Acoustic

Specification-grade architectural acoustic round fixtures deliver minimalistic and distinctive lines that are able to endorse any design of hospitality, retail ,and commercial space.

• Large varieties in sizes from 26" to 50"
• Lumens from 3,400LM to 15,300LM
• Acoustic felt available in 36 colors
• 90+ CRI
• Suspended & direct

Louver Cloud Acoustic

SIZE/LUMENS

• Dia x H: 26.4 x 11.8'' to 49.6 x 35.4''
• Lumens from 3,400LM to 15,300LM

COLOUR TEMP.

• 27K  2700K
• 30K  3000K
• 35K  3500K
• 40K  4000K

FINISH

• WH  White fixture finish
• BK    Black fixture finish
• Acoustic felt is available in 36 colors


MOUNTING OPTION

• SW  Suspended wire (Straight Aircraft Cables)

Spec Sheet:

Acoustic Louver Cloud-Spec-Fotons-V1.0-2025

IES File:

Cloud Direct-CD-2440-40W-24inch.IES

Cloud Direct-CD-3690-90W-36inch.IES

Cloud Direct-CD-48180-180W-48inch.IES

Installation Sheet:
