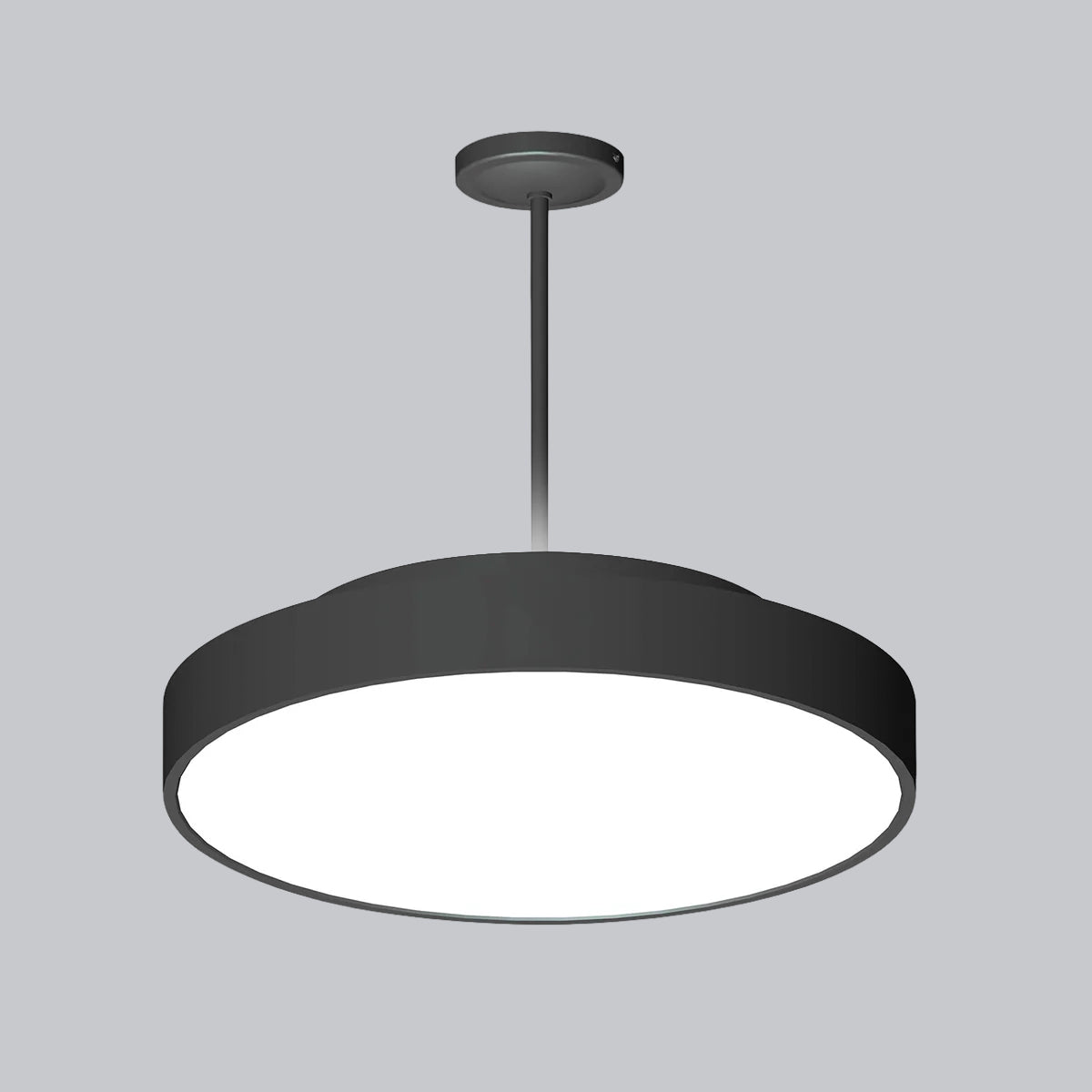

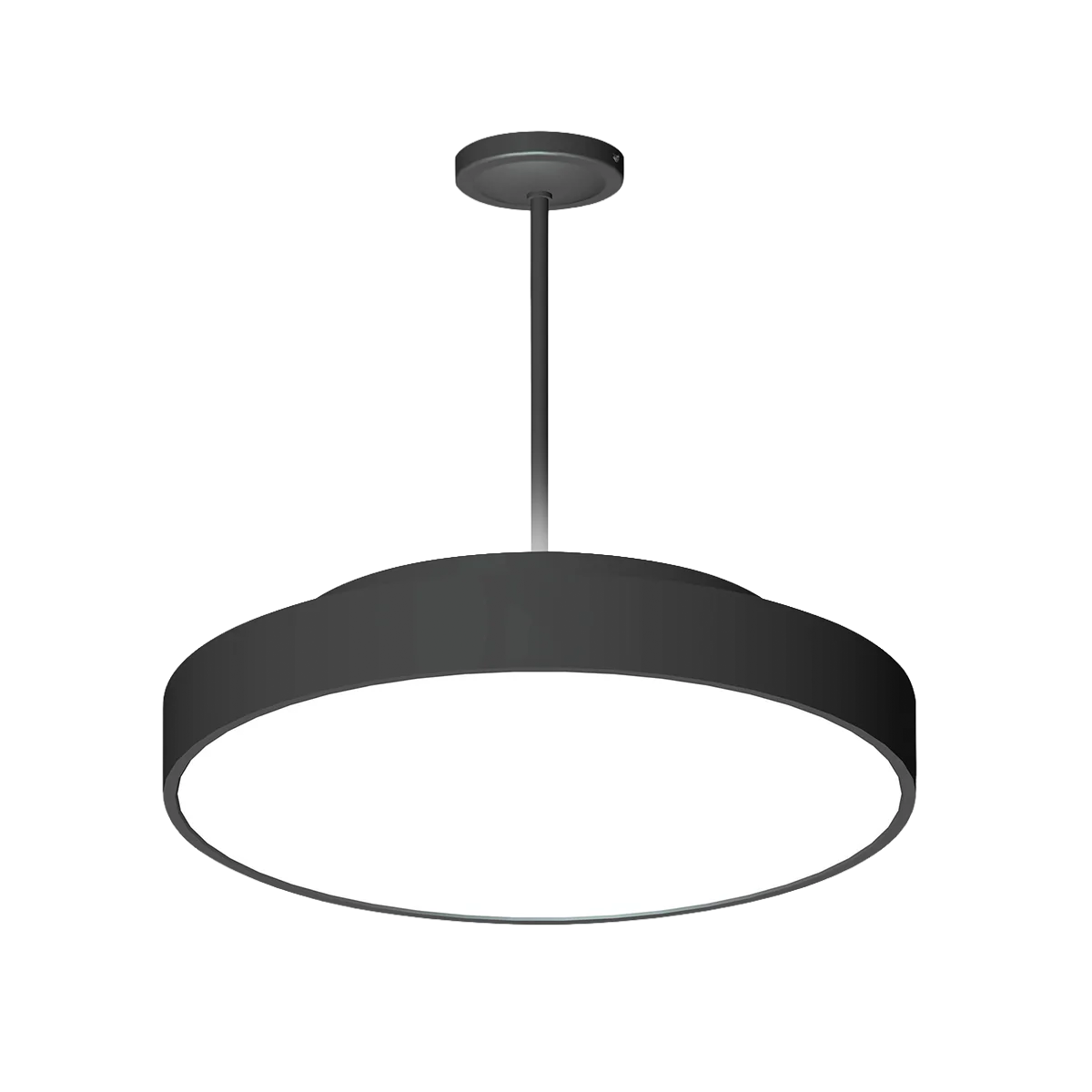

Cloud - Direct/Indirect (1.5ft to 4ft)

CDID Series: Cloud Direct/Indirect

Fotons Specification grade architectural LED Cloud fixture Direct/Indirect (Uplight/Downlight) (1.5ft to 4ft) fixtures deliver minimalistic and distinctive
lines that can endorse any design of hospitality, dealership, Long-term care & commercial space.

• Available from 19" to 48" (1.5 to 4ft) in diameter
• Lumens from 4,250LM to 18,700LM
• Low profile housing 3.1” height
• Extruded aluminum housing
• 90+ CRI
• Suspended & surface mount

CDID Series: Cloud Direct/Indirect

3.1'' H Suspended or 3.7''H Surface mount

19" to 48" (1.5 to 4ft) in diameter

Size/Lumens:

• 1950   19” | 4,250LM  | 1.5ft
• 2480    24” | 6,800LM | 2ft
• 36120  36” | 10,200LM | 3ft
• 48220  48” | 12,750LM (Surface Mounted) | 4ft
• 48220  48” | 18,700LM (Suspended) | 4ft

Colour Temp:

• 27K 2700K
• 30K 3000K
• 35K 3500K
• 40K 4000K

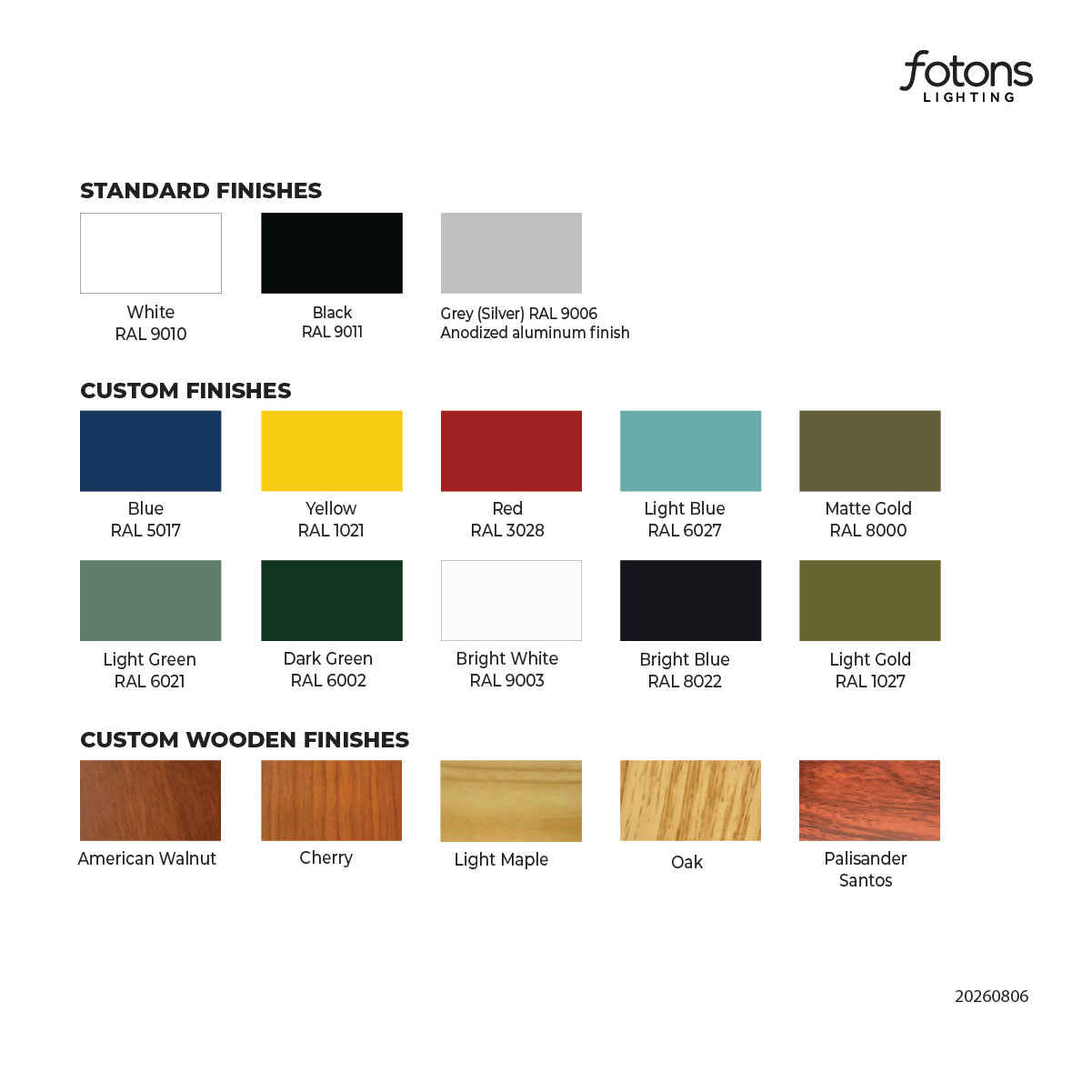

Finish:

• WH  White
• BK   Black
• Custom (Specify Ral# - ex. GR Grey RAL#9006)

Mounting Options:

• SW  Suspended wire
• SC   Suspended canopy
• ST   Stem mount
• SM  Surface mount

Spec Sheet:

Cloud-Direct Indirect CDID-Spec-Fotons-V1.0-2023

IES File:

Cloud Direct & Indirect-CDID-2480-80W-24inch.IES

Installation Sheet:

Cloud Suspended Install

Cloud Stem Install

Cloud Surface Install
