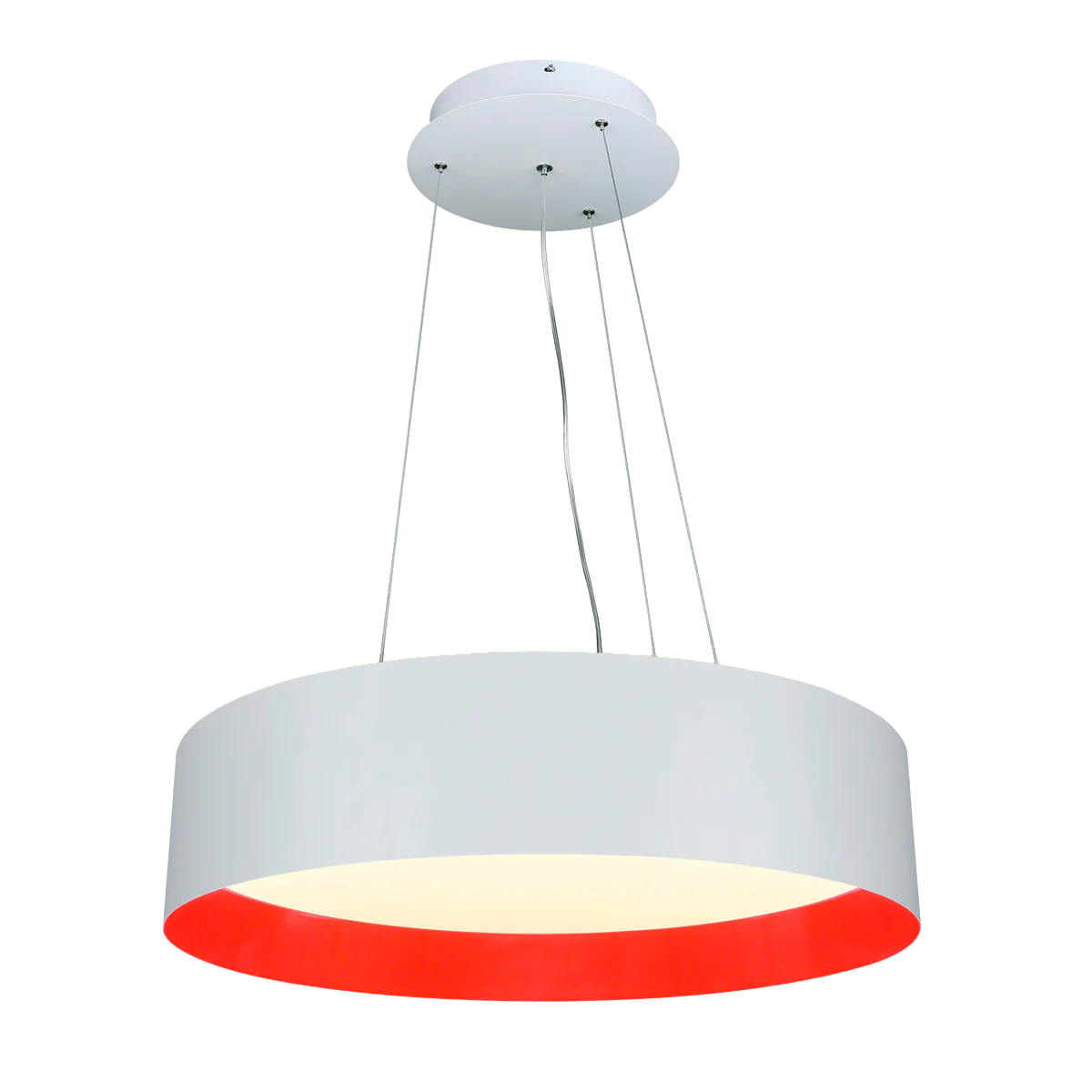

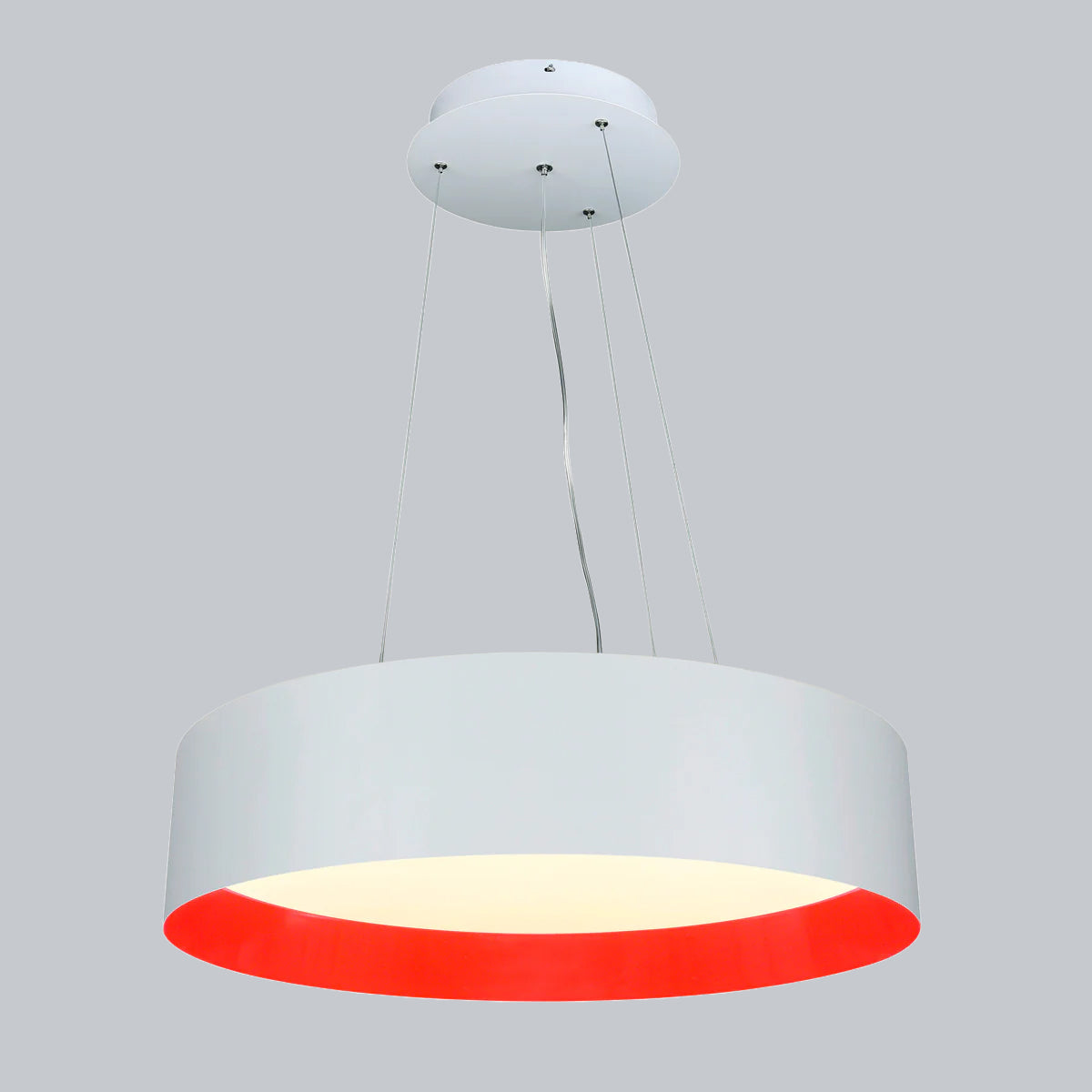

Splash - Direct/Indirect (2ft to 4ft)

Fotons Splash - Specification grade architectural Direct/Indirect (downlight/uplight) fixtures with size from 2ft to 4ft deliver minimalistic and distinctive lines that are able to endorse any design of hospitality, dealership and commercial space.

• Large varieties in sizes from 24" to 48" (2ft to 4ft)
• Lumens from 6,800LM to 18,700LM
• 5.5” height housing
• Extruded aluminum
• 90+ CRI
• Suspended & surface mount

SIZE/LUMENS

• 2460    24” | 6,800LM | 2ft
• 36120  36” | 10,200LM | 3ft
• 48220  48” | 18,700LM  (Suspended) | 4ft
• 48220  48” | 12,750LM  (Surface Mount) | 4ft

Colour Temp:

• 27K 2700K
• 30K 3000K
• 35K 3500K
• 40K 4000K

Finish:

• WH  White
• BK   Black
• Custom (Specify Ral# - ex. GR Grey RAL#9006)

Mounting Options:

• SW  Suspended wire
• SC   Suspended canopy
• ST    Stem mount
• SM   Surface mount

Splash-Direct Indirect SPLDID-Spec-Fotons-V1.0-2023

Splash Direct Indirect SPLDID2460-60W-24''-ies-Fotons
