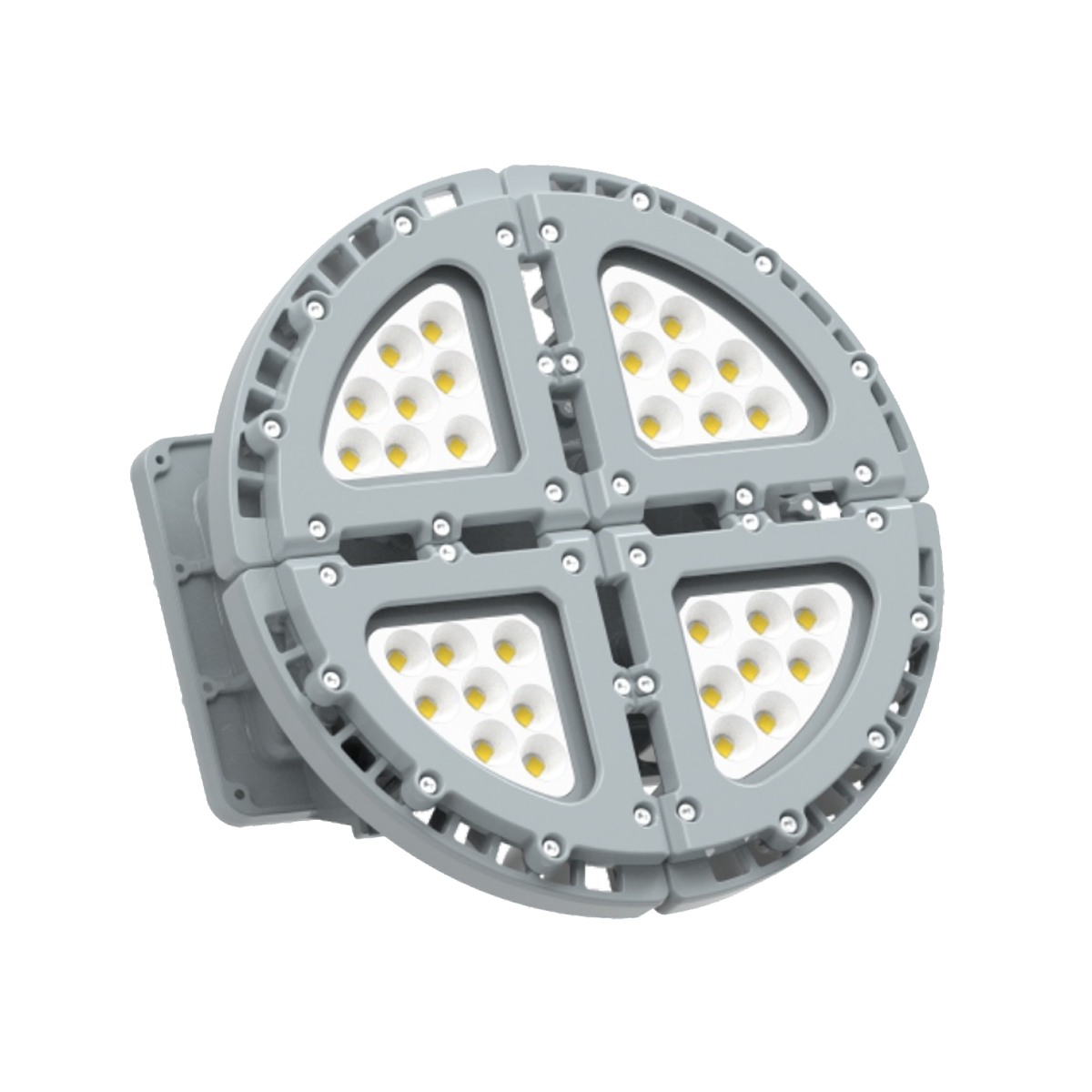

Explosion-proof Highbay EX01 (120-347V) CID1 Zone 1/2 T6 Hazardous Locations

For the Canadian Market

FS-EX01 Explosion-proof LED Highbay robustly withstands the harshest conditions and virtually eliminates lighting maintenance to improve site efficiency and safety. Designed for use in oil and gas (including hydrogen), chemical, mining, pulp & paper, and other volatile environments.

RATINGS
• Class I Division 1 Groups B , C , D
• Class I Division 2 Groups A , B , C , D
• Class II Division 1 Groups E , F , G
• Class II Division 2 Groups F , G
• Class III Division 1 & 2
• Zone 1/2
• Zone 21/22
• IP66

KEY FEATURES
• Copper-free Aluminum Housing
• Superior dual coat finish
• Temperature Classification: T6
• Dimmable Available, 1Hz Flash Available

CERTIFICATIONS
• cETL
• cUL 1598
• cUL 8750
• cUL 844
• CSA C22.2 # 250
• CSA C22.2 # 137

MODEL:

FS-EX01

WATTAGE/LUMEN
100
100W/13000LM
150
150W/19500LM
200
200W/26000LM
240
240W/31200LM

300
300W/39000LM

VOLTAGE
U
120-277V
UH
120-347V
H
347V

COLOUR TEMP.

• 30K 3000K
• 40K 4000K
• 57K 5700K

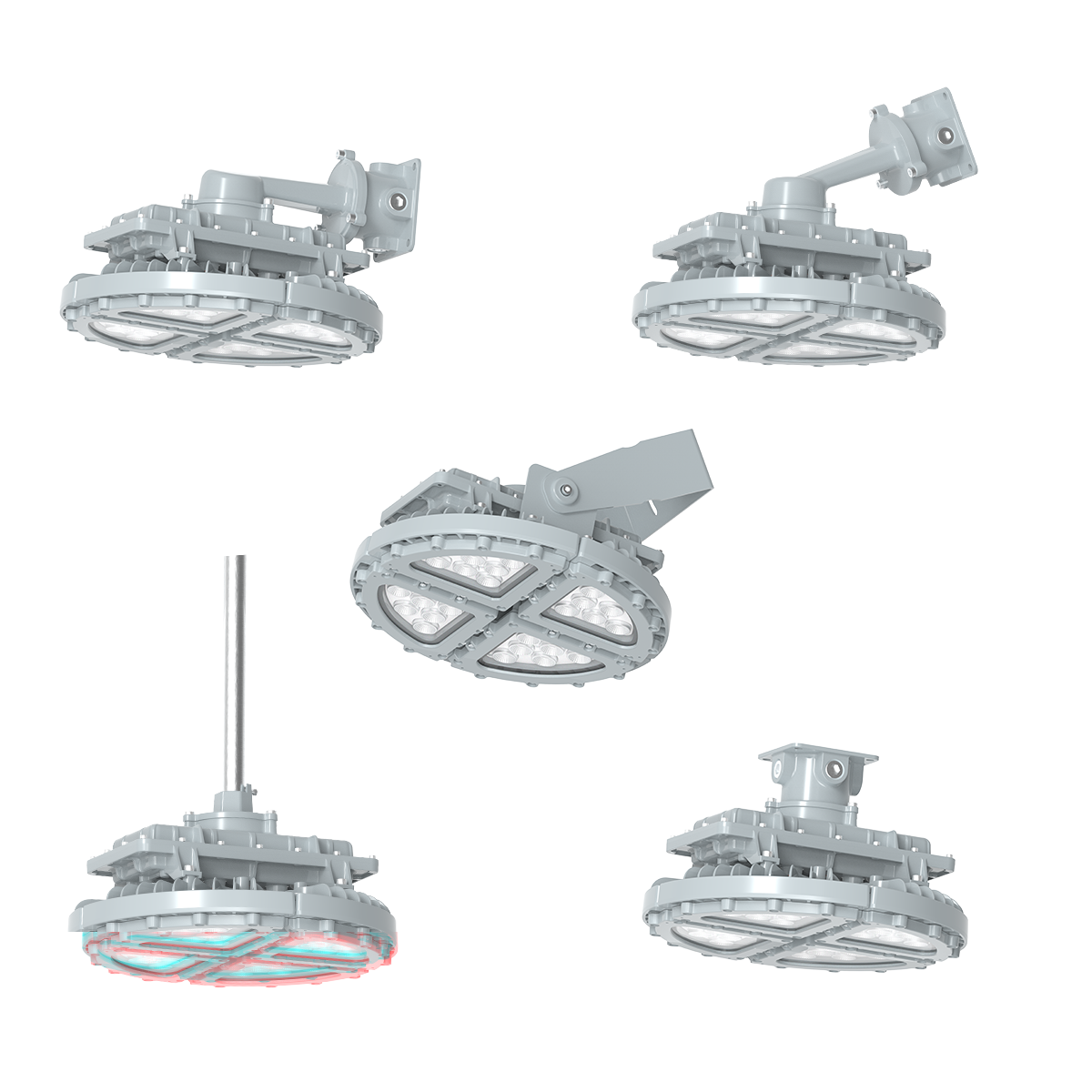

MOUNTING OPTION

TS
Trunnion Swivel
PM
Pendant Mount
WM
Wall Mount
25WM
25° Wall Mount
CM
Ceiling Mount

FIXTURE FINISH COLOUR
Grey

Spec Sheet:

Explosion-proof Highbay EX01-Spec-V1.0-2025 -Fotons

IES File:
