Rectangle Linear - Direct

Rectangle Linear Direct -REFD

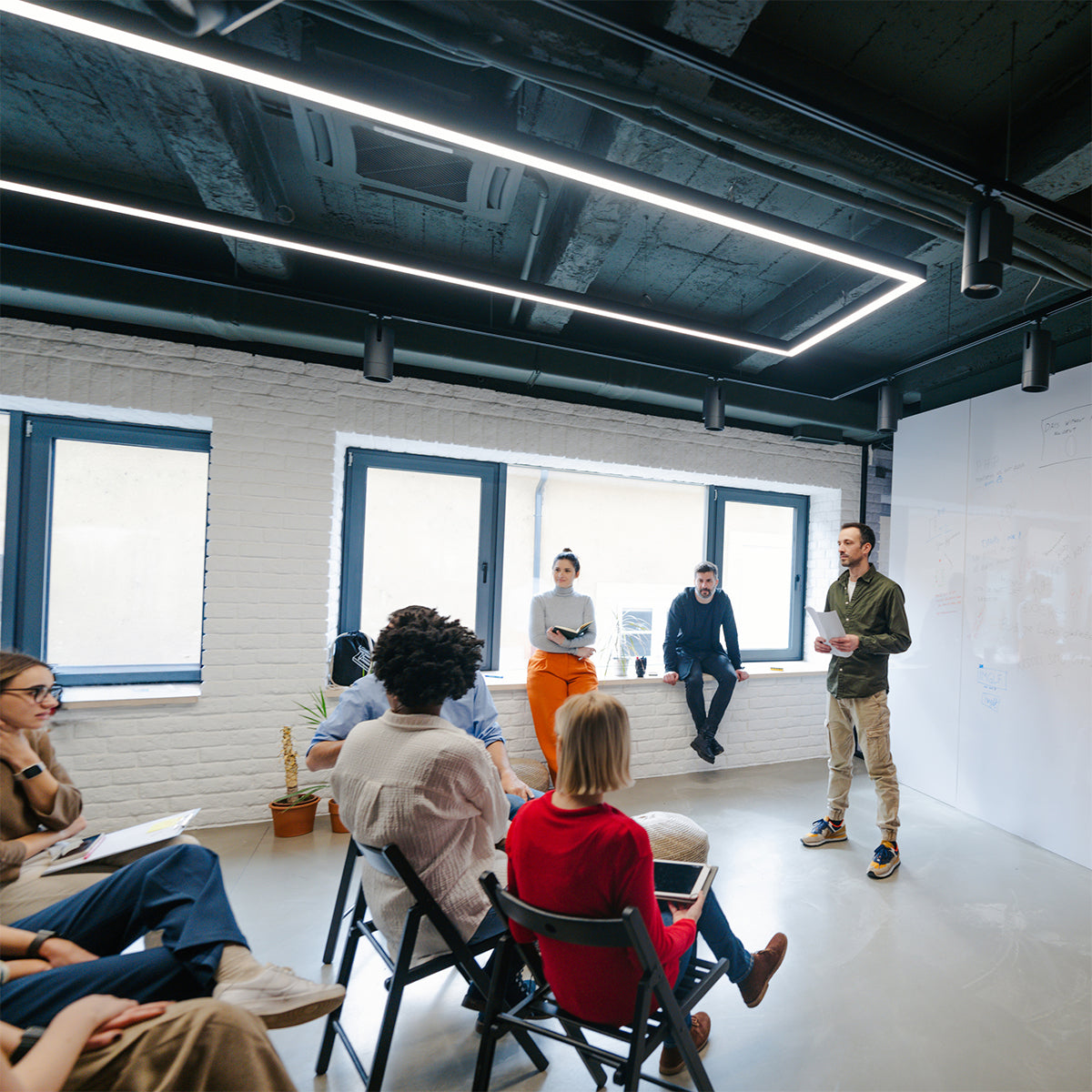

Specification-grade architectural LED rectangle linear delivers minimalistic and distinctive lines that can endorse any design of hospitality, dealership, or commercial space.

·        Available from 2'x2' to 4'x8'

·        Lumens from 4,200LM to 33,600LM

·        Extruded aluminum housing

·        90+ CRI

·        Suspended & Ceiling mount

Rectangle Linear Frame   REFD Series

from 2'x2' to 4'x8'

Custom

SIZE/LUMENS

·        1115

1'x1' | 1,575LM

·        2440

2'x2' | 4,200LM

·        4880

2'x4' | 8,400LM

·        48160

4'x4' | 16,800LM

·        94320

4'x8' | 33,600LM

COLOUR TEMP.

• 27K 2700K
• 30K 3000K
• 35K 3500K
• 40K 4000K

FINISH

• WH  White
• BK    Black
• Custom  Specify Ral# Example: GR Grey (RAL#9006)

MOUNTING OPTION

• SW  Suspended wire
• CM  Ceiling mount

Spec Sheet:

Rectangle Linear Direct -REFD - Spec-Fotons-V1.0-2024

IES File:

Rectangle Linear Direct REFD-2440-40W-24''-ies-Fotons
