Circo Ring - Outer (2FTO 5FT)

ROT Series Ring Outer

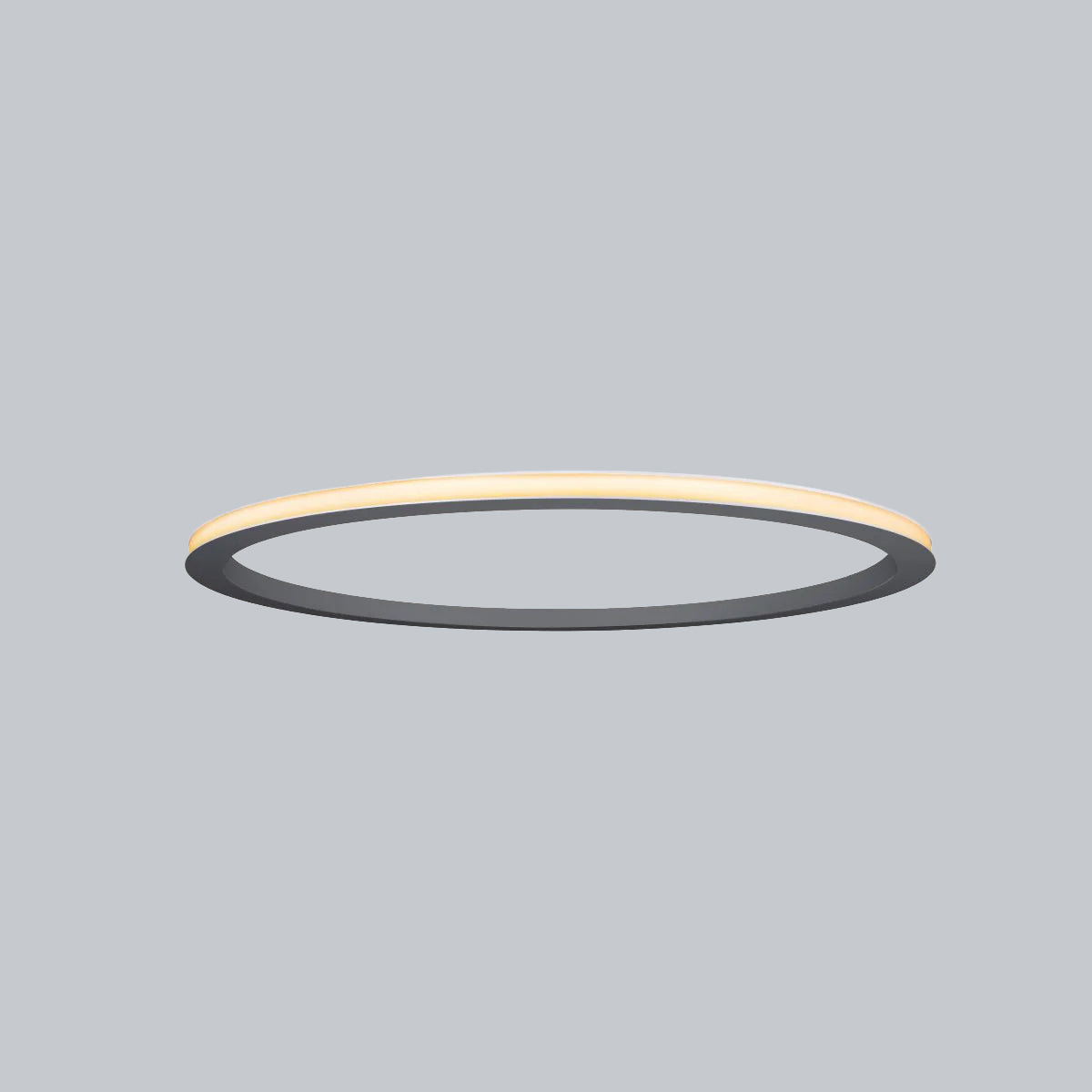

Fotons Specification grade architectural LED Circo Ring Outer light (2ft to 5ft)  fixtures deliver minimalistic and distinctive lines that are able to endorse any design of hospitality, dealership & commercial space.

  • Available from 24" to 60” (2ft to 5ft) in diameter
  • Lumens from 2,240LM to 5,600LM
  • Low profile housing 1.4'' width 1.3” height
  • Extruded aluminum housing
  • 90+ CRI
  • Suspended & surface mount

ROT Series Ring Outer

1.4'' W x 1.3''H

24" to 60” (2ft to 5ft) in diameter

 SIZE/LUMENS

  • 2432  24” | 2,240LM    2FT
  • 3640  36” | 2,800LM    3FT
  • 4870  48” | 4,900LM    4FT
  • 6080  60” | 5,600LM    5FT

COLOUR TEMP.

  • 27K  2700K
  • 30K  3000K
  • 35K  3500K
  • 40K  4000K

FINISH

  • WH  White
  • BK   Black
  • Custom Specify Ral# Example: GR Grey (RAL#9006)

MOUNTING OPTION

  • SW  Suspended wire
  • SC   Suspended canopy
  • SM  Surface mount

Spec Sheet:

Circo Ring-Outer ROT-Spec-Fotons-V1.0-2023

IES File:

Ring Outer ROT3640-40W-36''-ies-Fotons
