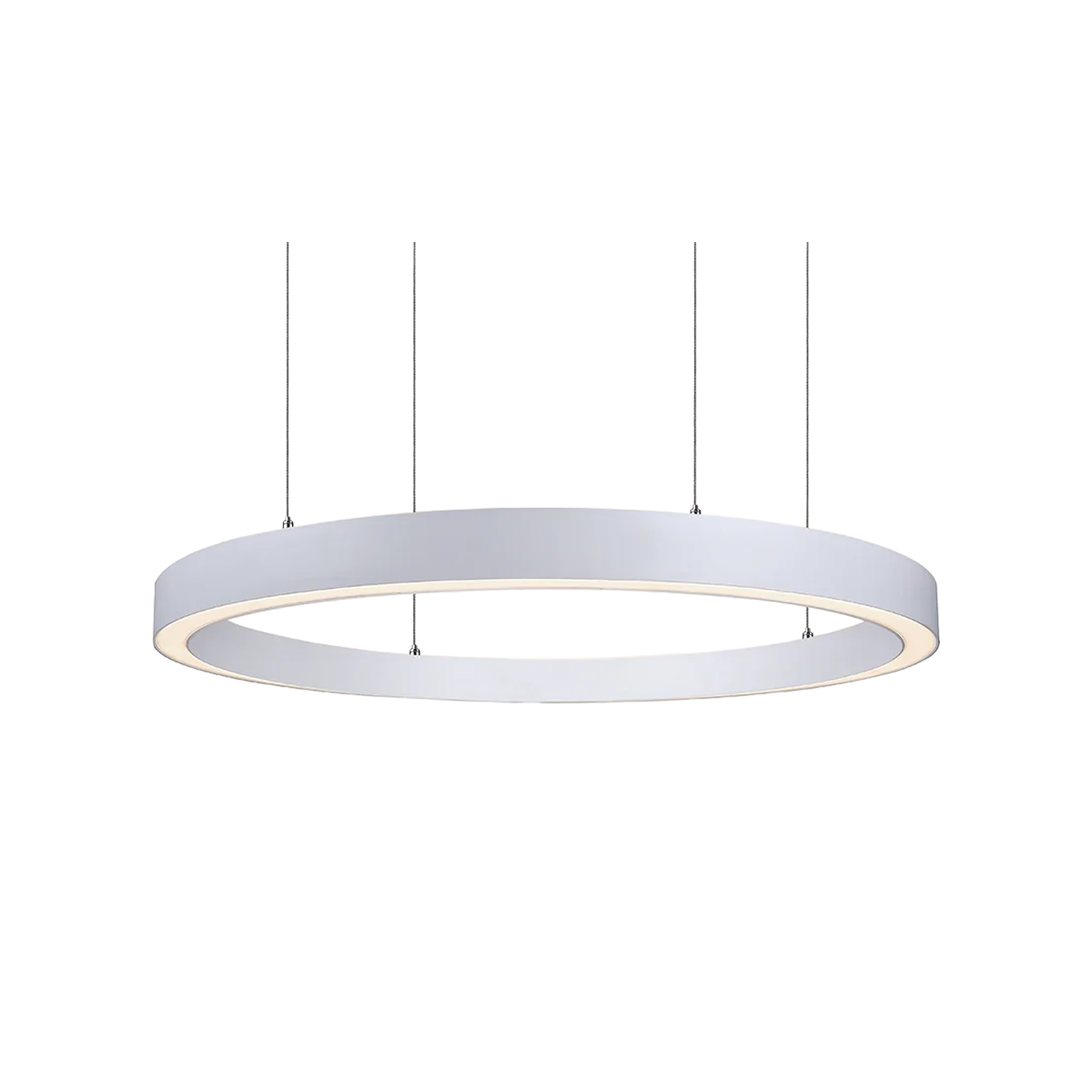

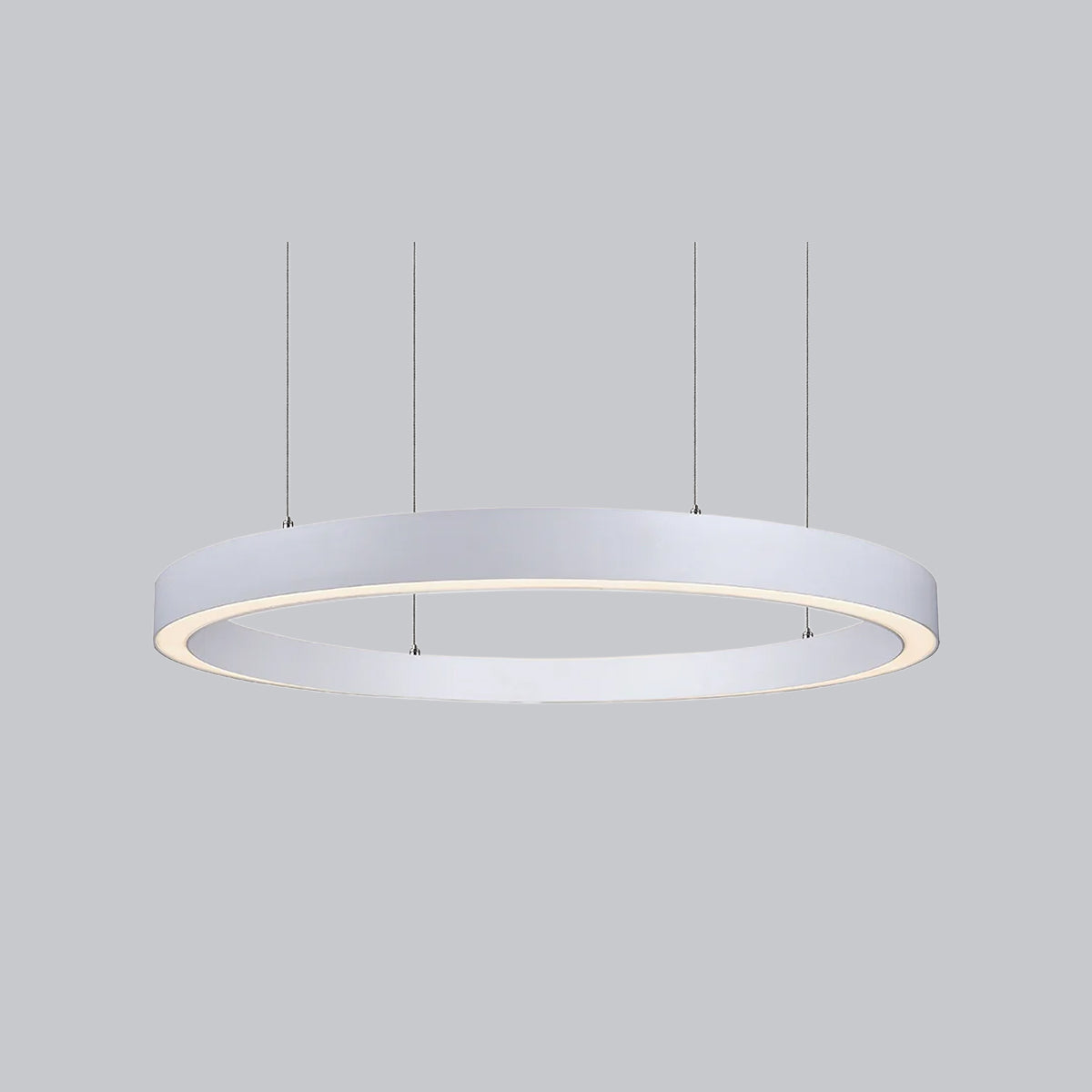

Circo Ring - Direct/Indirect (2ft to 16ft)

Fotons Specification grade architectural LED ring fixtures Direct/Indirect (Uplight/Downlight) size from 2ft to 16ft deliver minimalistic and distinctive lines that are able to endorse any design of hospitality, dealership, office & commercial space.

  • Available from 24" to 196" (2ft to 16ft) diameter
  • Lumens from 5,525LM to 40,800LM
  • Low profile housing 1.7” width 2.7''height
  • Extruded aluminum housing
  • 90+ CRI
  • Suspended & surface mount

SIZE/LUMENS

  • 2450      24” | 5,525LM     2FT
  • 3680      36” | 6,800LM     3FT
  • 48120    48” | 10,200LM    4FT
  • 60135    60” | 11,475LM    5FT
  • 78150    78” | 12,750LM    6.5FT
  • 118300  118” | 25,500LM  10FT
  • 196480  196” | 40,800LM  16FT

COLOUR TEMP.

  • 27K 2700K
  • 30K 3000K
  • 35K 3500K
  • 40K 4000K

FINISH

  • WH  White
  • BK    Black
  • Custom  Specify Ral# Example: GR Grey (RAL#9006)

MOUNTING OPTION

  • SW  Suspended wire
  • SC   Suspended canopy

Circo Ring-Direct Indirect RDID-Spec-Fotons-V1.0-2023

Ring Direct & Indirect-RDID3680-80W-36''-ies-Fotons.IES
