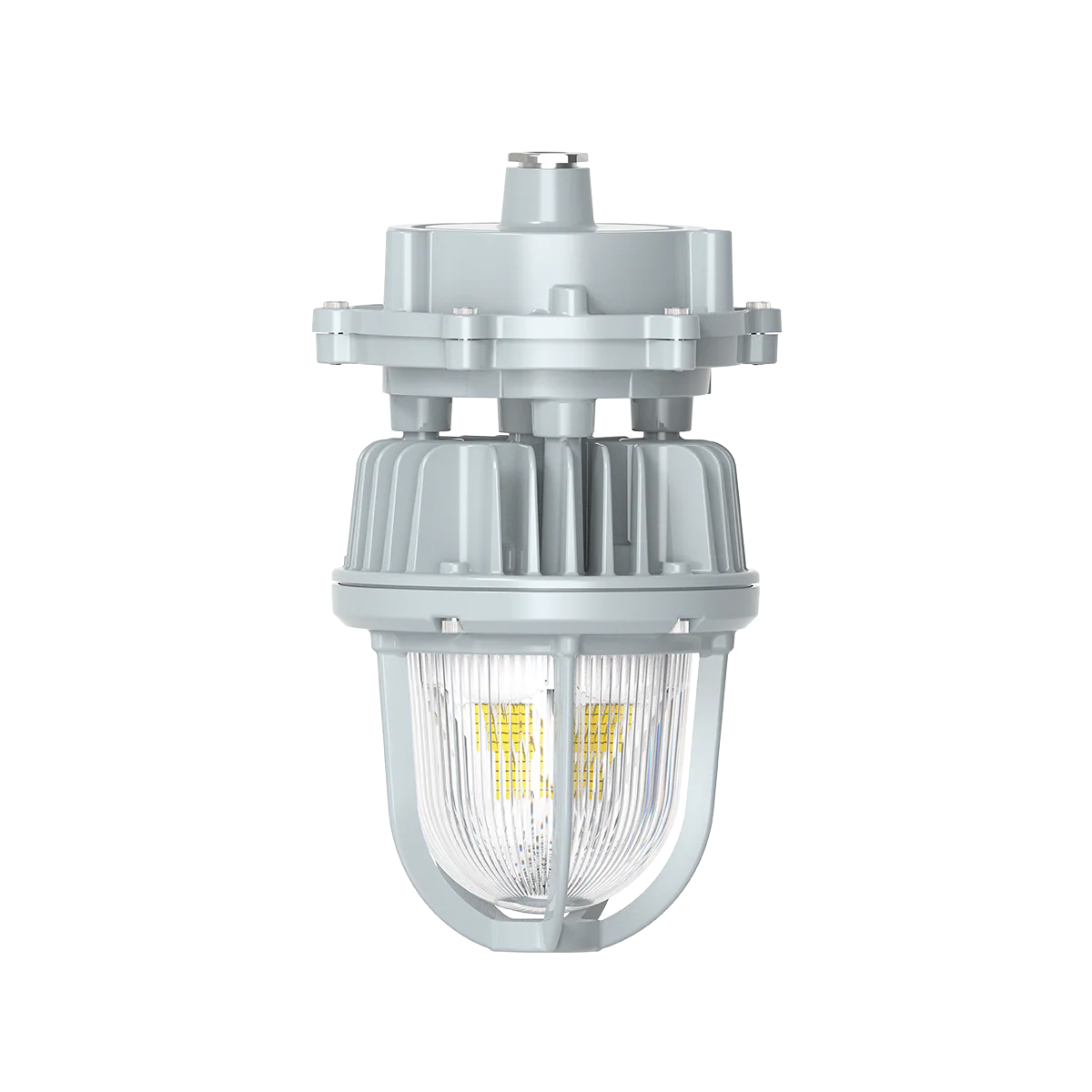

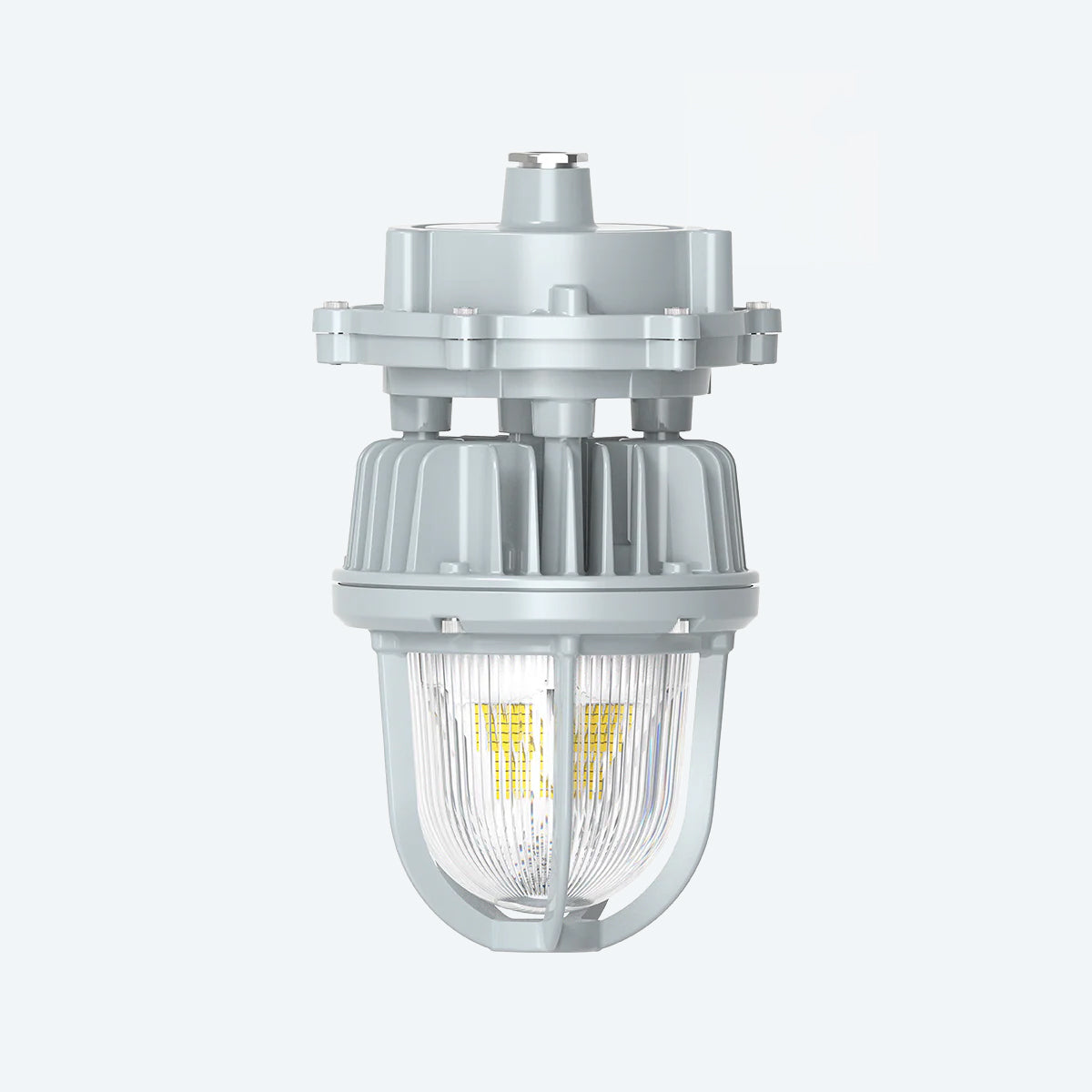

Explosion-proof Jar Light EX-02 (120-347V) CID1 Zone 1/2 T6 Hazardous Locations

For the Canadian Market

The FS-EX02 series is a heat- and impact-resistant glass LED fixture that provides nine colors of light sources: 3000K, 4000K, 5000K, 5700K, Red, Green, Blue, Amber, and Purple. It can also serve as a strobe light, providing operators with a powerful warning or signaling solution.

RATINGS
• Class I Division 1 Groups C , D
• Class I Division 2 Groups A , B , C , D
• Class II Division 1 Groups E , F , G
• Class II Division 2 Groups F , G
• Class III Division 1 & 2
• Zone 1/2
• Zone 21/22
• IP66

KEY FEATURES
• Temperature classification: T6
• Housing a superior dual-coat finish
• Copper-free aluminum
• Dimmable available
• Daylight sensor available
• 1Hz Flash available

CERTIFICATIONS
• cETLus
• cULus 1598
• cULus 8750
• cULus 844
• CSA C22.2 # 250
• CSA C22.2 # 137

MODEL:

FS-EX-02

WATTAGE/LUMEN
15
15W/2378LM
25
25W/3770LM
50
50W/7956LM

VOLTAGE
U
120-277V
UH
120-347V
H
347V-480V

COLOUR TEMP.

• 30K 3000K
• 40K 4000K
• 50K 5000K
• 57K 5700K
• R
  Red
• G
  Green
• B
  Blue
• Y
  Yellow
• P
  Purple

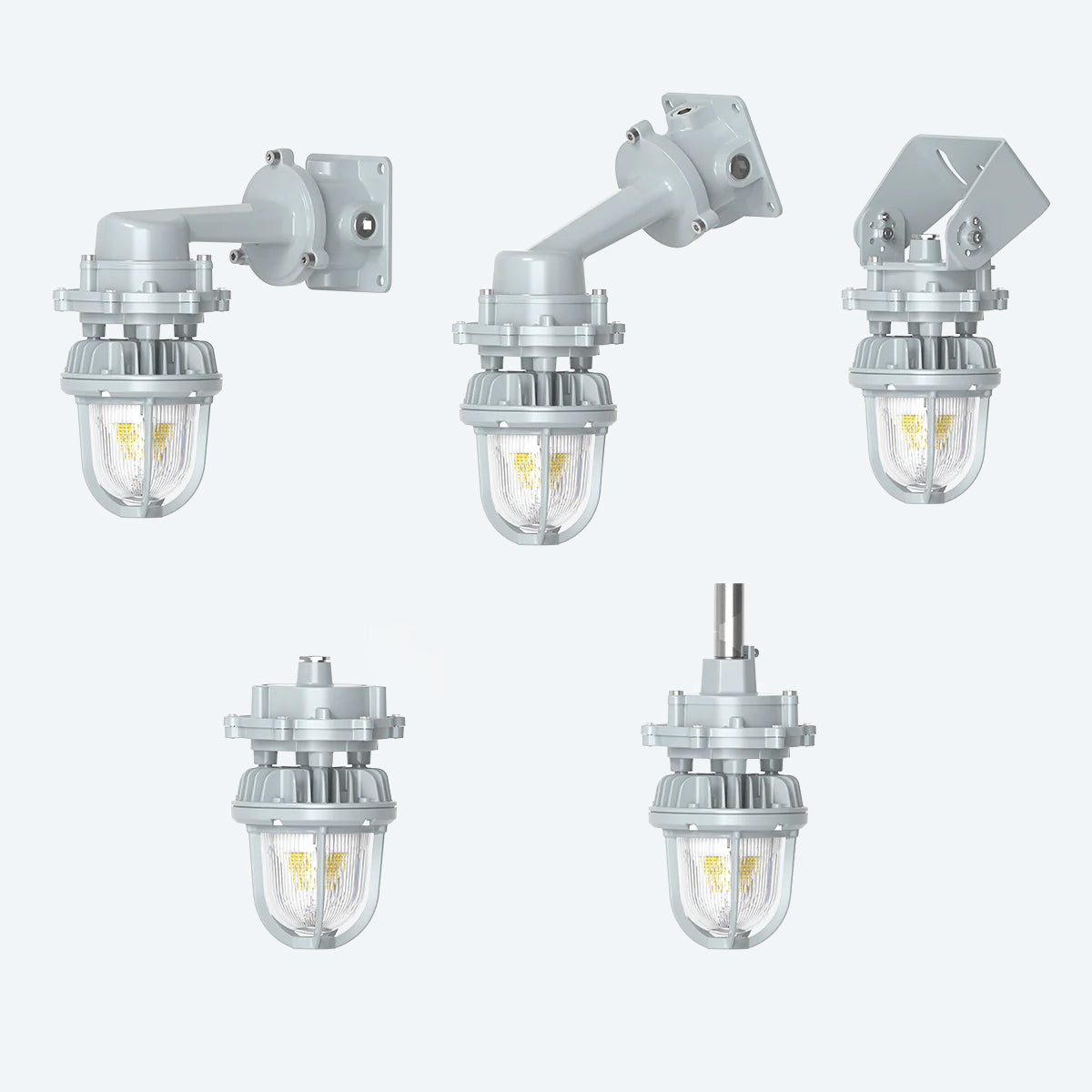

MOUNTING OPTION

TS
Trunnion Swivel
PM
Pendant Mount
CM
Ceiling Mount
WM
Wall Mount
25WM
25° Wall Mount

OPTION
NDM
Non-Dimmable
DM
Dimmable
DS
Daylight Sensor
FS
1Hz Flash

FIXTURE FINISH COLOUR
Grey

POWR CABLE LENGTH
ST
Standard 6FT (72”  1828mm) black 18/3 cord
CU
Custom Length (feet)

Spec Sheet:

Explosion-proof Jar EX02-Spec-V1.0-2025 -Fotons

IES File:
