Explosion-proof Highbay EX01 (120-347V) CID1 Zone 1/2 T6 Hazardous Locations

Description
Details
Specification Downloads

Description

For the Canadian Market

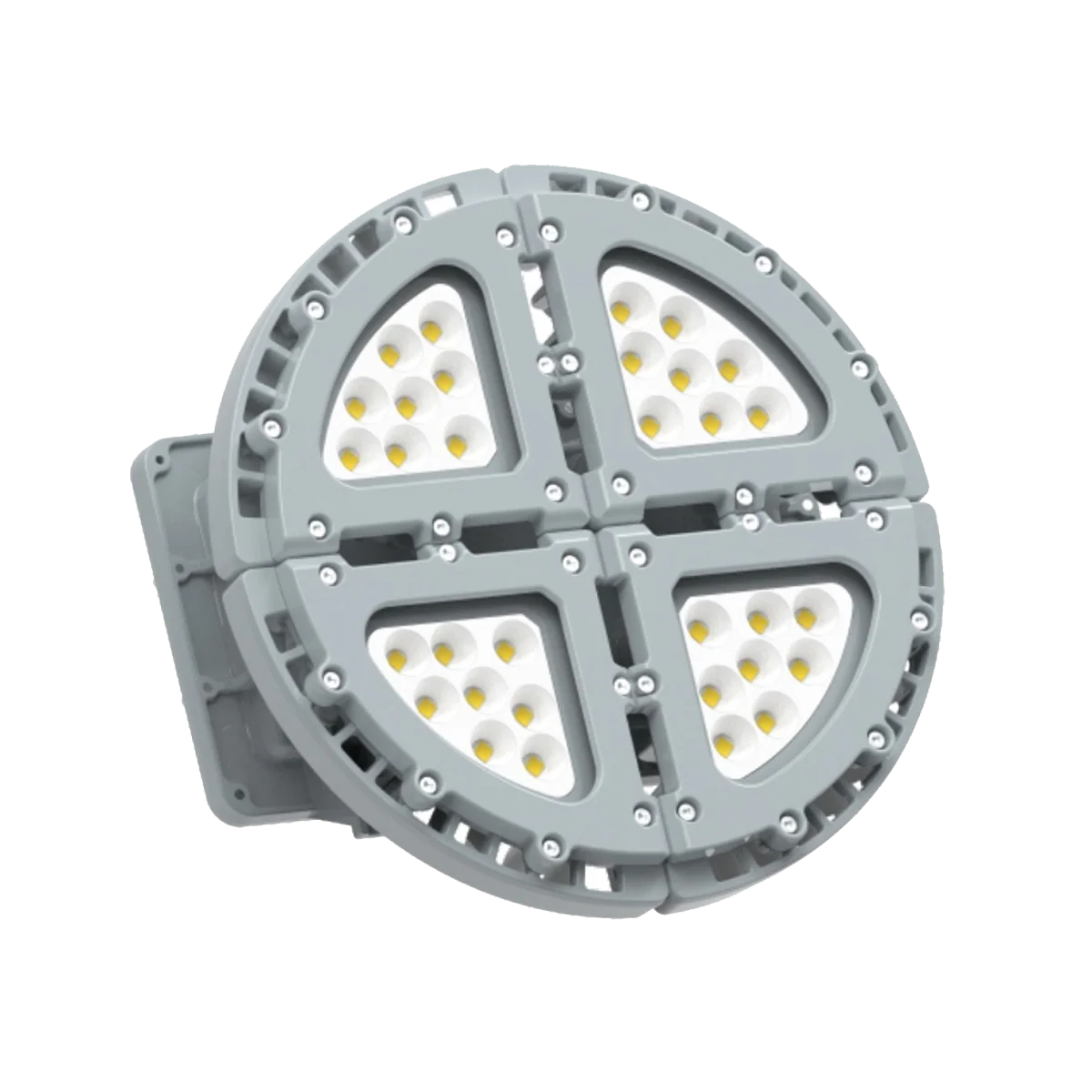

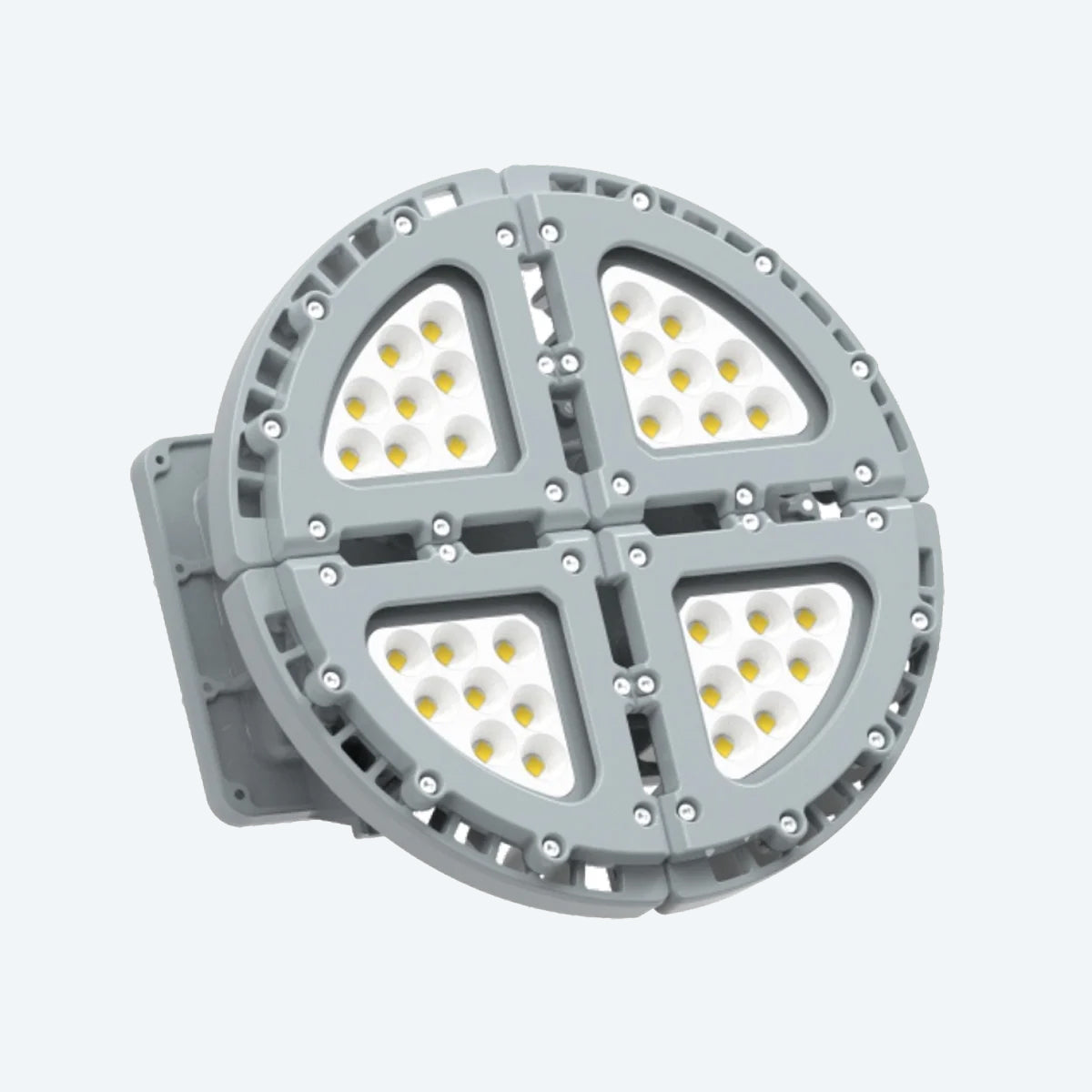

FS-EX01 Hazardous Location LED Highbay robustly withstands the harshest conditions and virtually eliminates lighting maintenance to improve site efficiency and safety.
Designed for use in oil and gas including hydrogen, chemical, mining, pulp & paper and other volatile environments.

RATINGS
• Class I Division 1 Groups B , C , D
• Class I Division 2 Groups A , B , C , D
• Class II Division 1 Groups E , F , G
• Class II Division 2 Groups F , G
• Class III Division 1 & 2
• Zone 1/2
• Zone 21/22
• IP66

KEY FEATURES
• Temperature classification: T6
• Copper-free aluminum housing
• Superior dual coat finish
• Dimmable available
• Daylight Sensor available

CERTIFICATIONS
• cETLus
• cULus 1598
• cULus 8750
• cULus 844
• CSA C22.2 # 250
• CSA C22.2 # 137

Details

MODEL:

FS-EX01

WATTAGE/LUMEN
100
100W/12670LM
150
150W/18830LM
200
200W/25190LM
240
240W/30680LM

300
300W/38350LM

VOLTAGE
U
120-277V
UH
120-347V
H
347V-480V

COLOUR TEMP.
