Cylinder ERA - Direct 8'' ECYL8

Cylinder ERA - Direct 8'' ECYL8

High-performance cylinders, delivering glare-free lighting, designed for a minimalist aesthetic.

Model: ECYL8

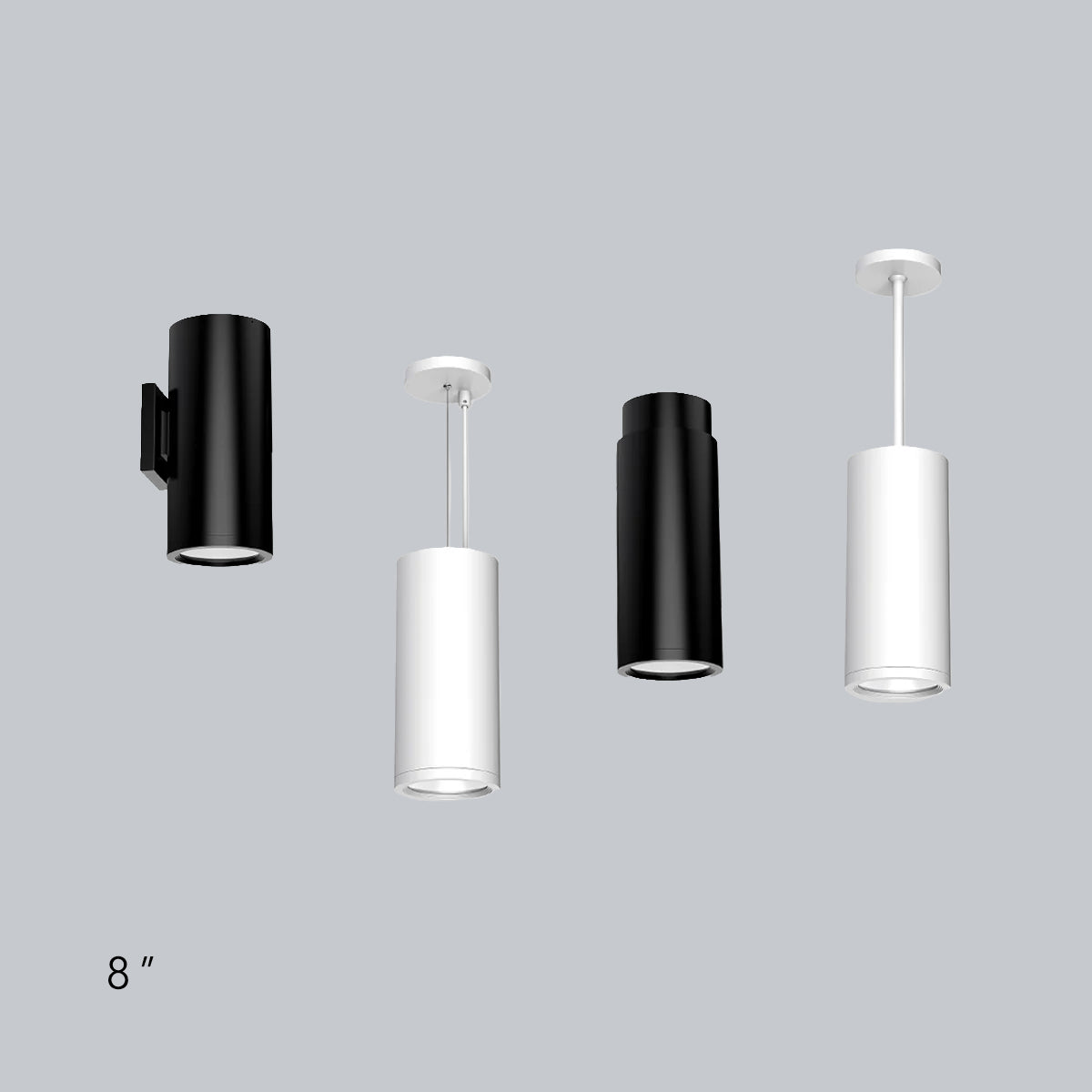

ERA 8” Cylinder Direct - ECYL8

WATTS
60
65
70

COLOUR TEMP.
27K  2700K
30K  3000K
35K  3500K
40K  4000K
50K  5000K
CCTS  CCT Selectable 27K/30K/35K/40K/50K

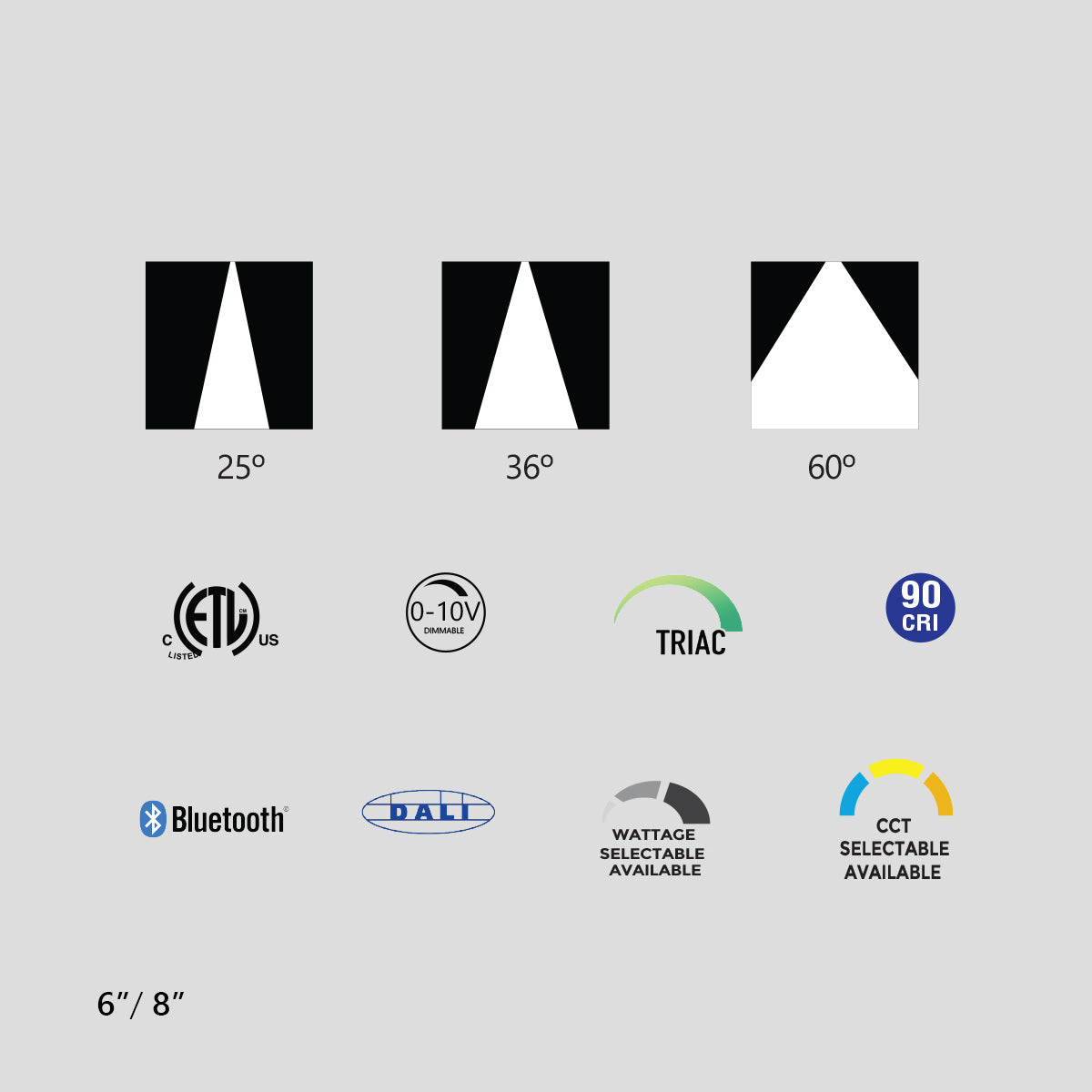

OPTIC
25  25º
36  36º
60  60º

DIMMING
DM  0-10V (5-10%)
PM  Phase Dimming
DIM  1%  Dimming 1%
DL   Dali
MC  Mesh Control

VOLTAGE
UNV   120V-277V(0-10V Dimming)
120   120V(Phase Dimming)

CRI
90   90+ CRI

FINISH
BK   Black
WH   White
GR    Grey
CU   Custom (Special Ral#)

TRIM
FRO8    8” Baffle Trim

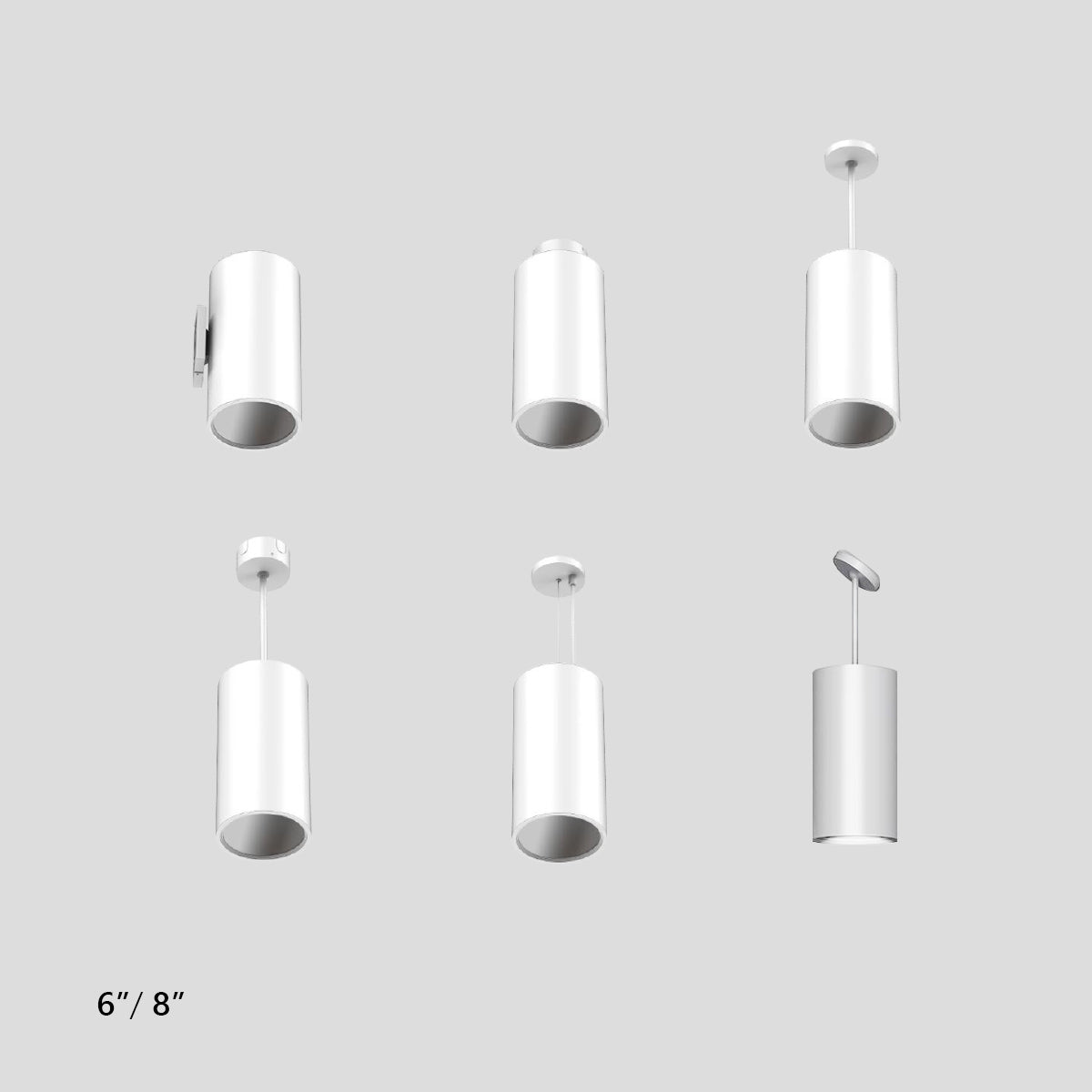

MOUNTING
Please Select From The Mounting (See Below)

CANOPY TYPE
SC (Standard)   Canopy Height 0.78'' (20mm) DM  0-10V (5-10%)
UC   Thin Canopy Height 0.26'' (6.5mm) DM  0-10V (5-10%)
DC  Canopy with Conduit

CANOPY FINISH
BK   Black
WH   White
GR    Grey
CU   Custom (Special Ral#)

SUSPENSION
BKST   Black Stem
WHST   White Stem
BKCL    Black Cable
WHCL   White Cable

CABLE LENGTH
ST   1.6ft (Standard) (500mm)
33AC   3ft
63AC   6ft
CU   Custom (Special Ral#)

STEAM LENGTH
ST   1ft (Standard) , xx ft (linked by 1ft)
CU   Custom (Special Ral#)

EMERGENCY
EB   Emergency Backup

Spec Sheet:

Cylinder-Direct 8'' ECYL8-Spec 25-V1.0 -Fotons

IES File:
