Cylinder ERA - Direct 3'' ECYL3

Cylinder ERA - Direct 3'' ECYL3

High-performance cylinders, delivering glare-free lighting, designed for a minimalist aesthetic.

• Mounting options: Ceiling mount, Wall mount, pendant (cable/stem), Conduit
• The twist lock cone comes in 4 available colors and 4 optics
• CCT: fixed CCT or CCT selectable available
• Wattage selectable (9W, 12W, 15W) available
• Dimming: 0-10V Dimming, Phase Dimming
• Dali, Bluetooth
• SDCM: <3 (2-Step Fixed CCT / 3-Step selectable CCT)
• 90+ CRI

Cylinder ERA - Direct 3'' ECYL3

Deep Regress Trim: 2.87''D x 8.13''H

Baffle Trim: 2.87''D x 7.09''H

SIZE/LUMENS

• 9W   900LM
• 12W 1176LM
• 15W 1366LM

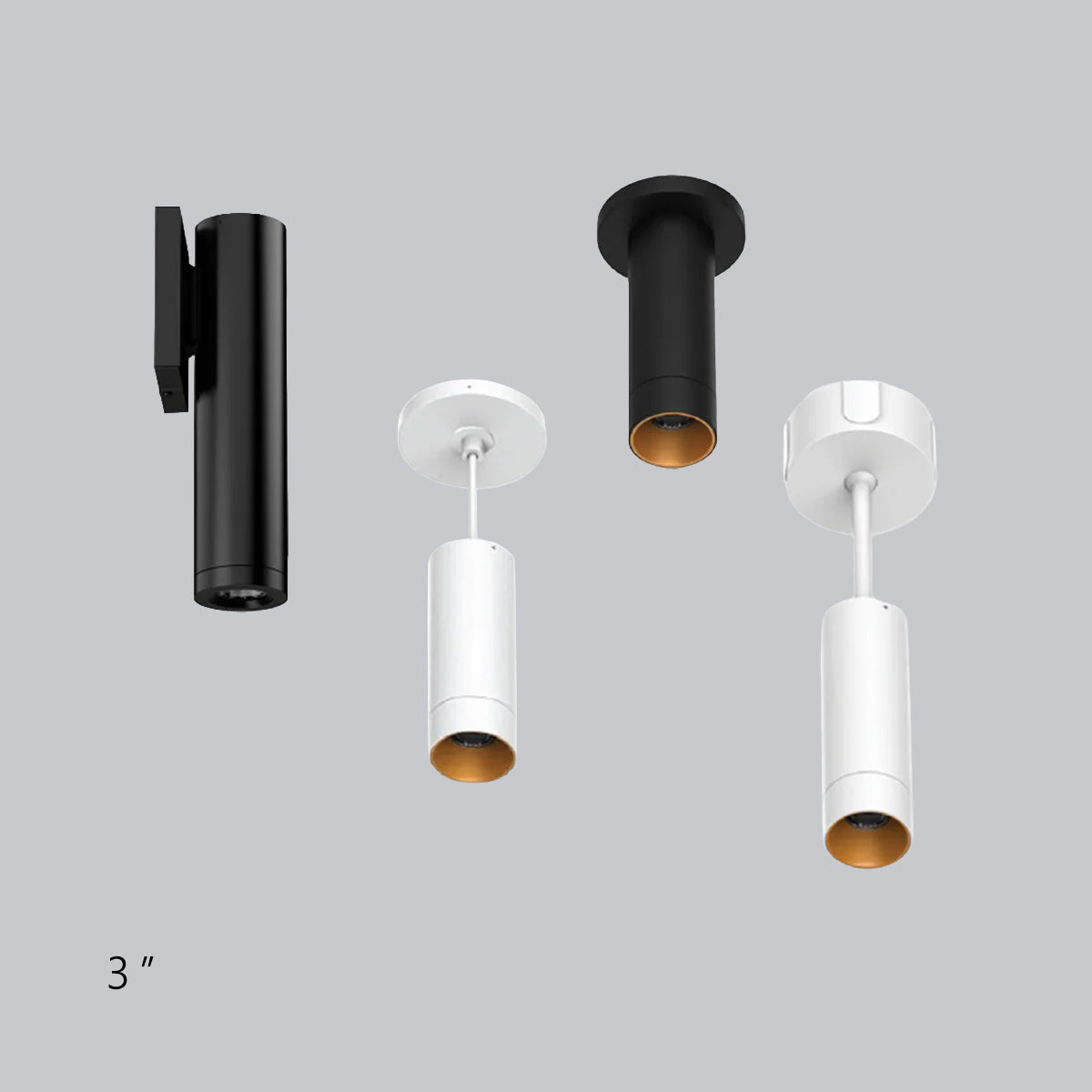

MOUNTING OPTION

• CM: Ceiling mount
• WM: Wall mount,
• CP: Cable pendant
• ST: Stem pendant
• STC: Stem Conduit
• CPC: Cable Conduit
• SS: Swivel Stem

COLOR TEMP.

• 27K  2700K
• 30K  3000K
• 35K  3500K
• 40K  4000K
• CCT Selectable
  27K/30K/35K/40K/50K

FINISH

• WH  White
• BK   Black
• Custom Specify Ral# Example: GR Grey (RAL#9006)

Spec Sheet:

Cylinder-Direct 3'' ECYL3 -Spec 25-V1.0 -Fotons

IES File:
