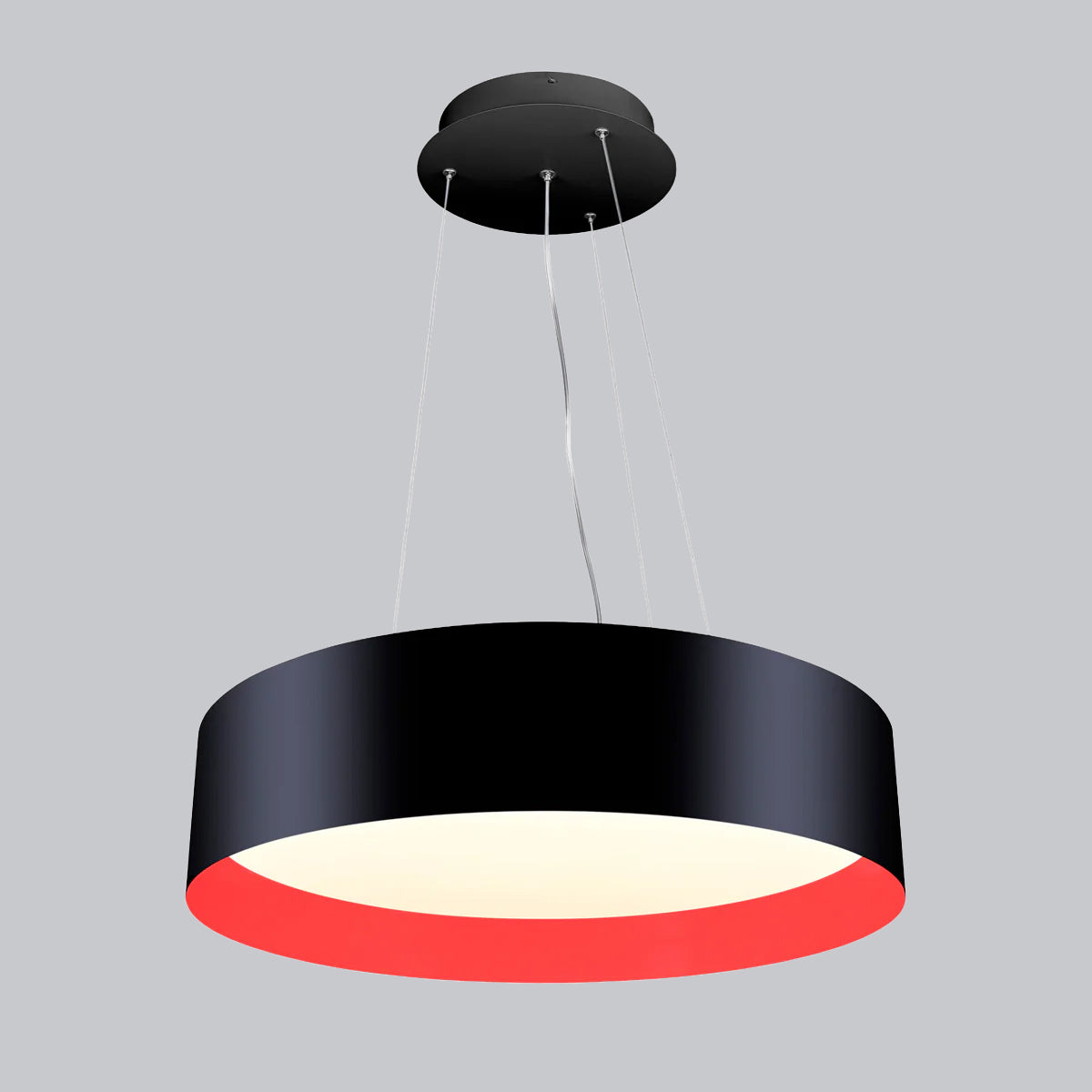

Splash - Direct (Downlight) (2ft to 4ft)

SPLD Series: Splash - Direct

Fotons Splash - Specification grade architectural Direct Downlight (2ft to 4ft) deliver minimalistic and distinctive lines that are able to endorse any design of hospitality, dealership and commercial space.

  • Large varieties in sizes from 24" to 48" (2ft to 4ft) in Diameter
  • Lumens from 3,400LM to 15,300LM
  • 5.5” height housing
  • Extruded aluminum
  • 90+ CRI
  • Suspended & surface mount

SPLD Series: Splash - Direct

5.5'' H Suspended, 6.9''H Surface mount

24" to 48" (2ft to 4ft) in Diameter

SIZE/LUMENS

  • 2440    24” | 3,400LM | 2FT
  • 3690    36” | 7,650LM | 3FT
  • 48180  48” | 15,300LM  (Suspended) | 4FT
  • 48180  48” | 12,750LM (Surface Mount) | 4FT

Colour Temp:

  • 27K 2700K
  • 30K 3000K
  • 35K 3500K
  • 40K 4000K

Finish:

  • WH  White
  • BK   Black
  • Custom (Specify Ral# - ex. GR Grey RAL#9006)

Mounting Options:

  • SW  Suspended wire
  • SC   Suspended canopy
  • ST    Stem mount
  • SM   Surface mount

Spec Sheet:

Splash-Direct SPLD-Spec-Fotons-V1.0-2023

IES File:

Splash Direct SPLD2440-40W-24''-ies-Fotons
