Cloud - Direct (1ft to 4ft)

Description
Details
Specification Downloads

Description

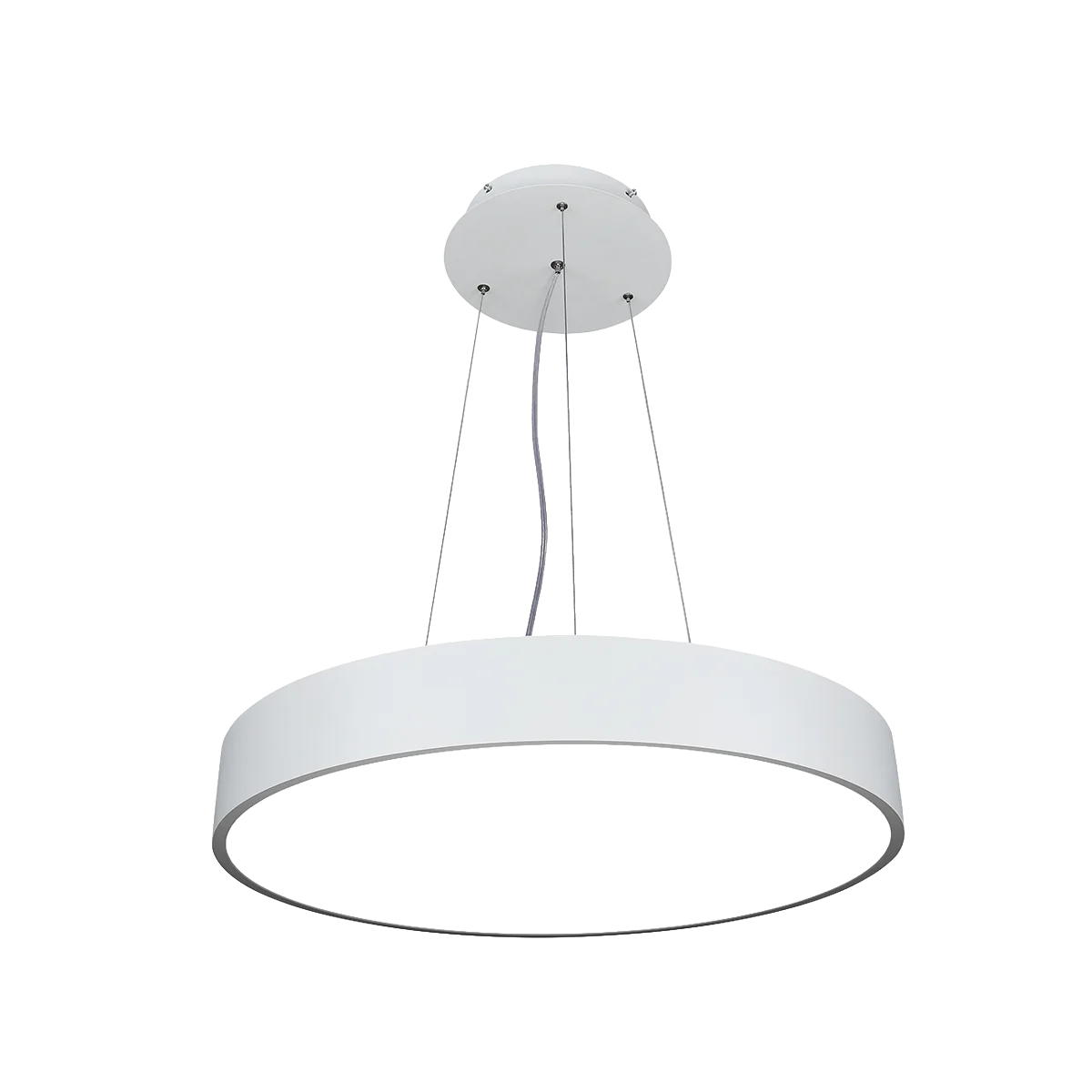

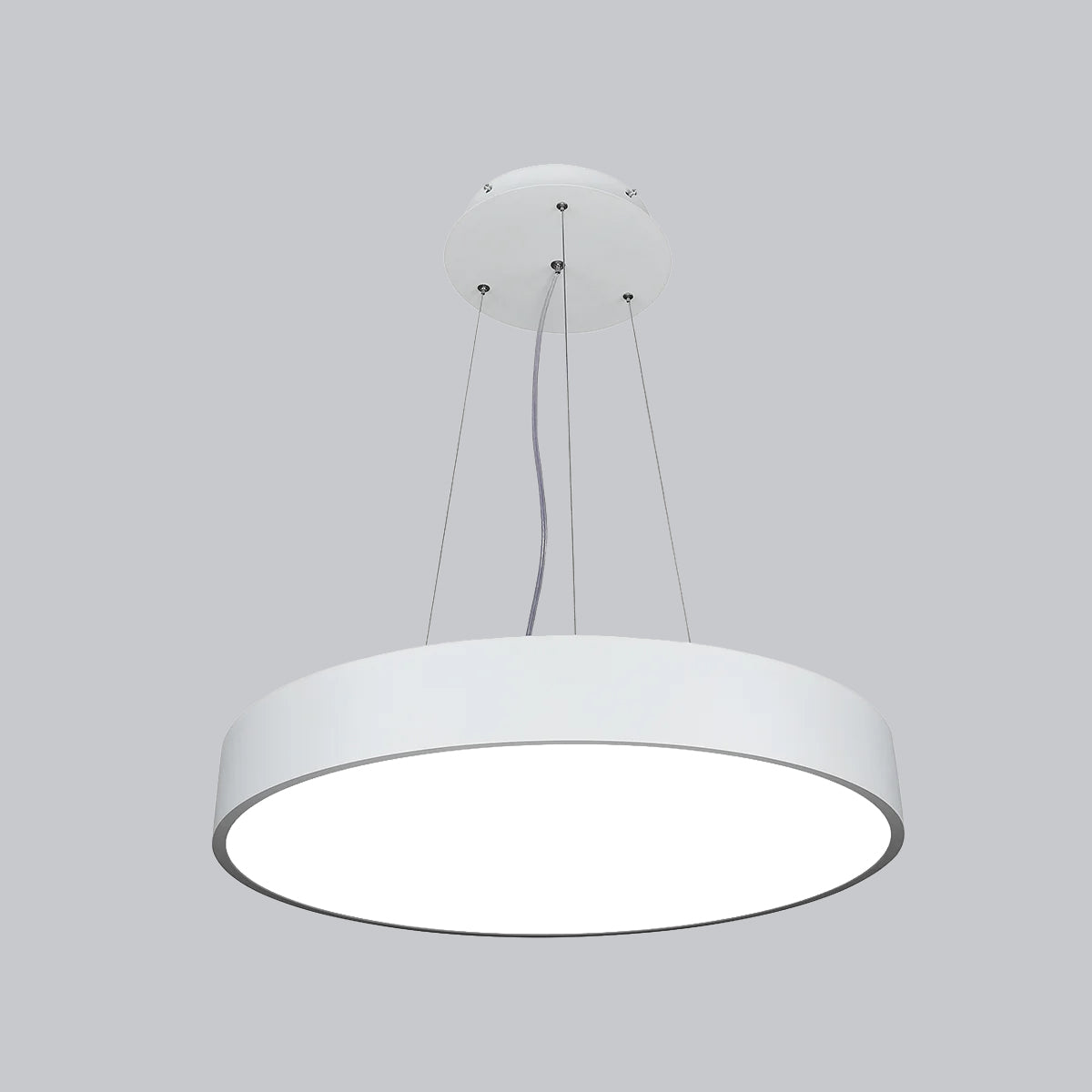

CD Series Cloud Direct

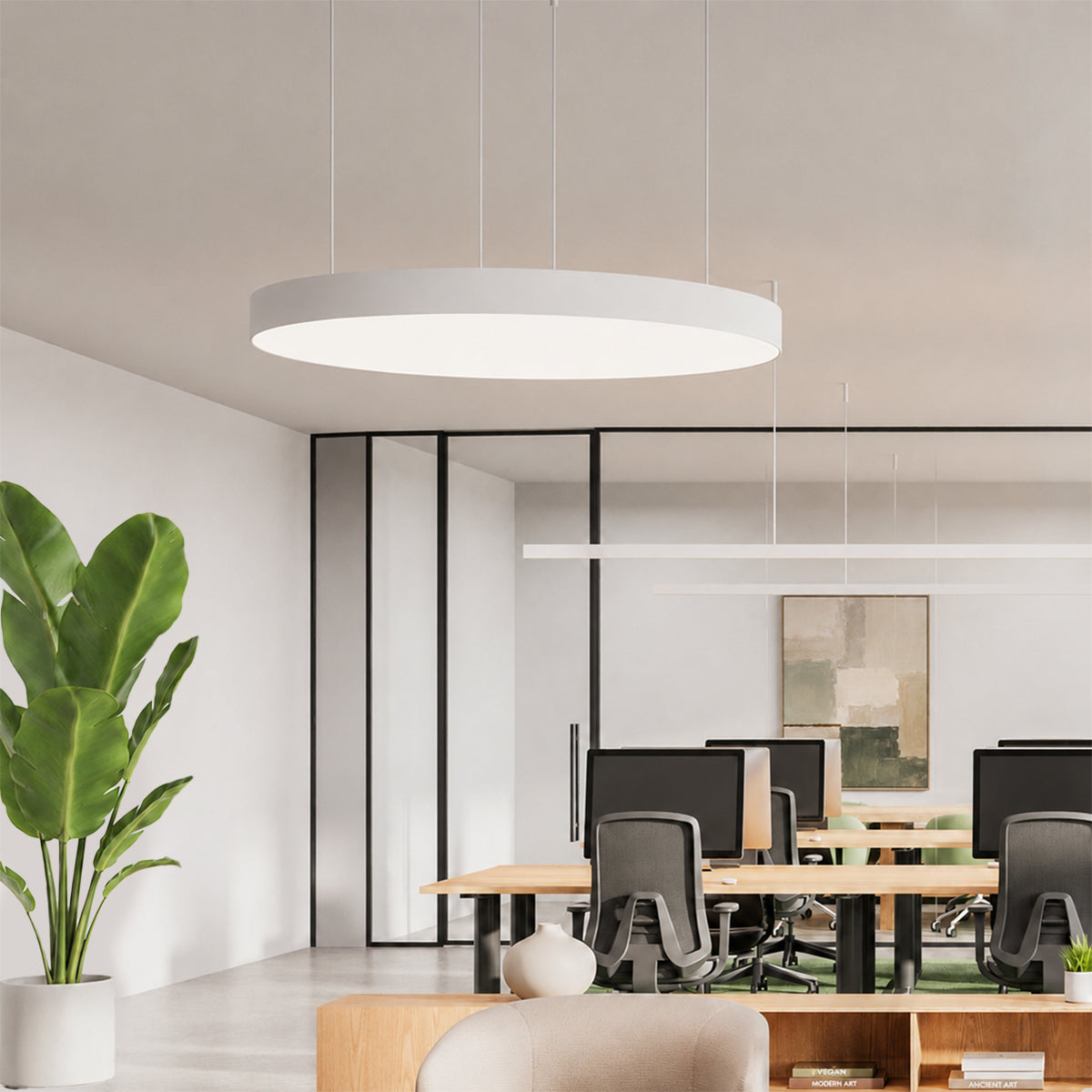

Fotons Specification grade architectural LED Cloud Direct light (downlight) with size from 1ft to 4ft delivers minimalistic and distinctive lines that is able to endorse any commercial, hospitality and senior home interior.

Large varieties in sizes from 12" to 48" (1FT to 4FT)
Lumens from 1,275LM to 15,300LM
Low profile housing 3.1 height
Extruded aluminum housing
90+ CRI
Suspended & surface mount

Details

CD Series Cloud Direct

Suspended 3.1'' H or Surface mount 3.7''H

12" to 48" (1FT to 4FT)

SIZE/LUMENS

1215 12” | 1,275LM | 1FT
1620 16” | 1,700LM | 1.3FT
1925 19” | 2,125LM | 1.6FT
2440 24” | 3,400LM | 2FT
3690 36” | 7,650LM | 3FT
48150 48” | 12,750LM (Surface Mounted) | 4FT
48180 48” | 15,300LM (Suspended) | 4FT

COLOUR TEMP.

27K 2700K
30K 3000K
35K 3500K
40K 4000K

FINISH

WH White
BK Black
Custom Specify Ral# Example: GR Grey (RAL#9006)

MOUNTING OPTION

SW Suspended wire
SC Suspended canopy
ST Stem mount
SM Surface mount

Specification Downloads

Spec Sheet:

IES File:

Installation Sheet:

More details
