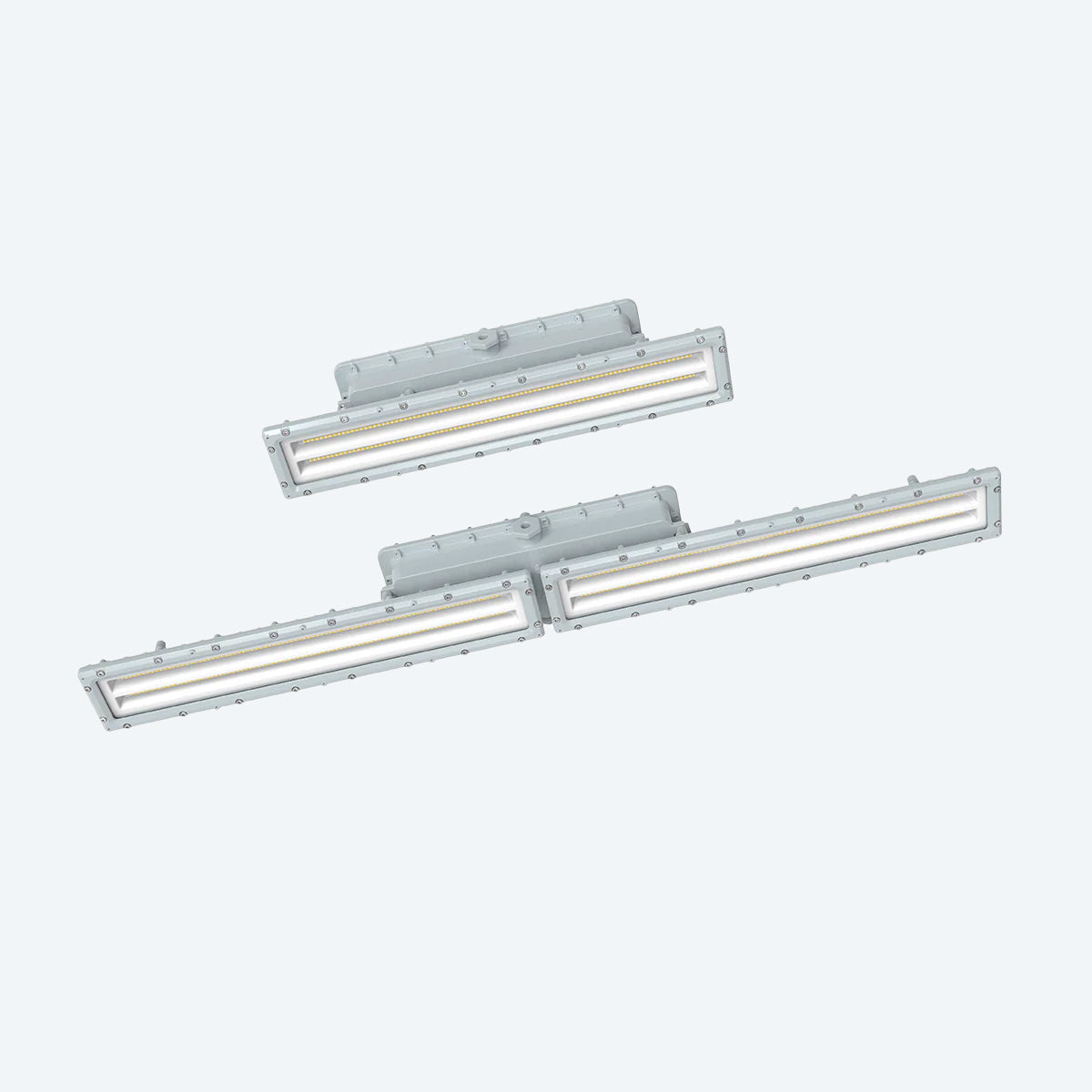

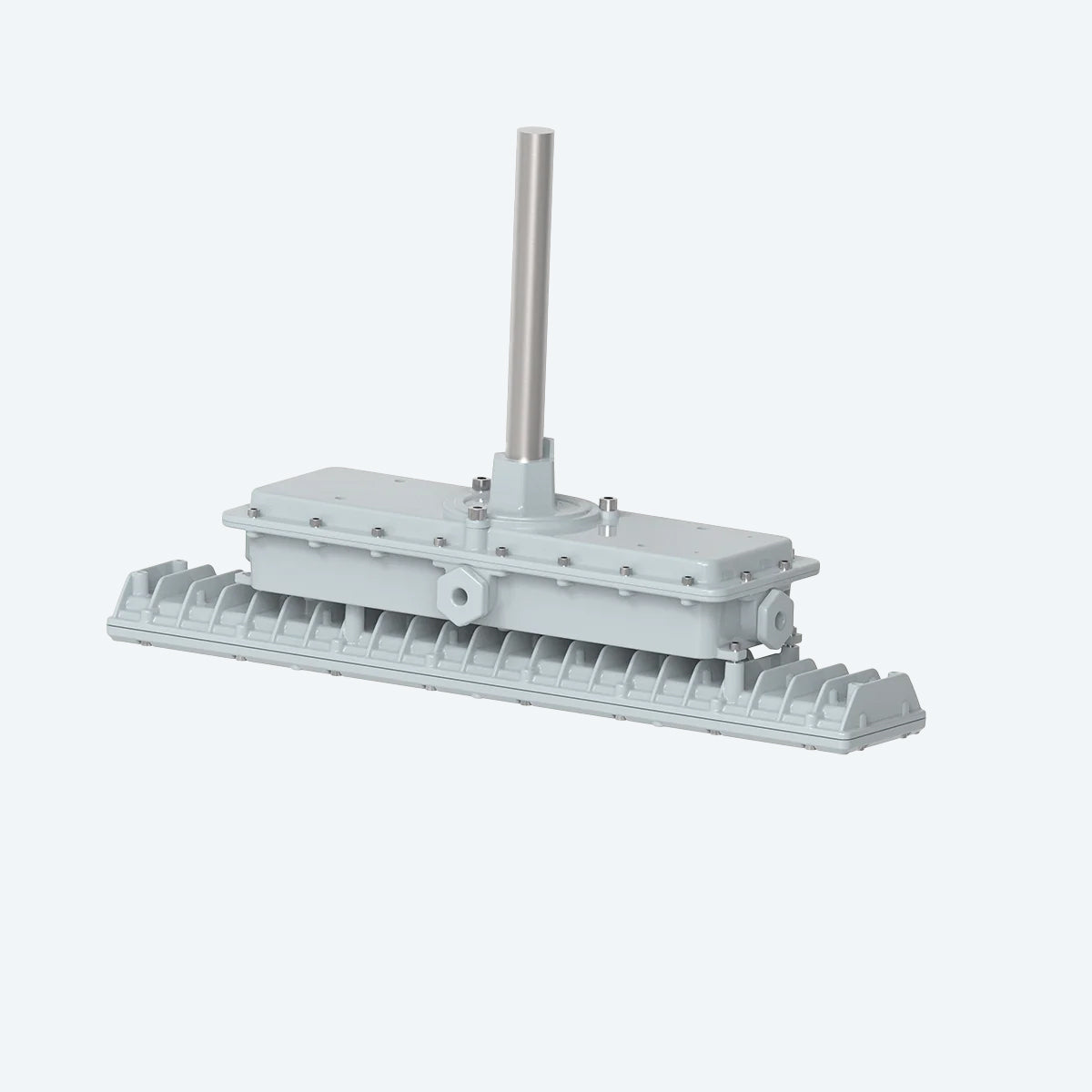

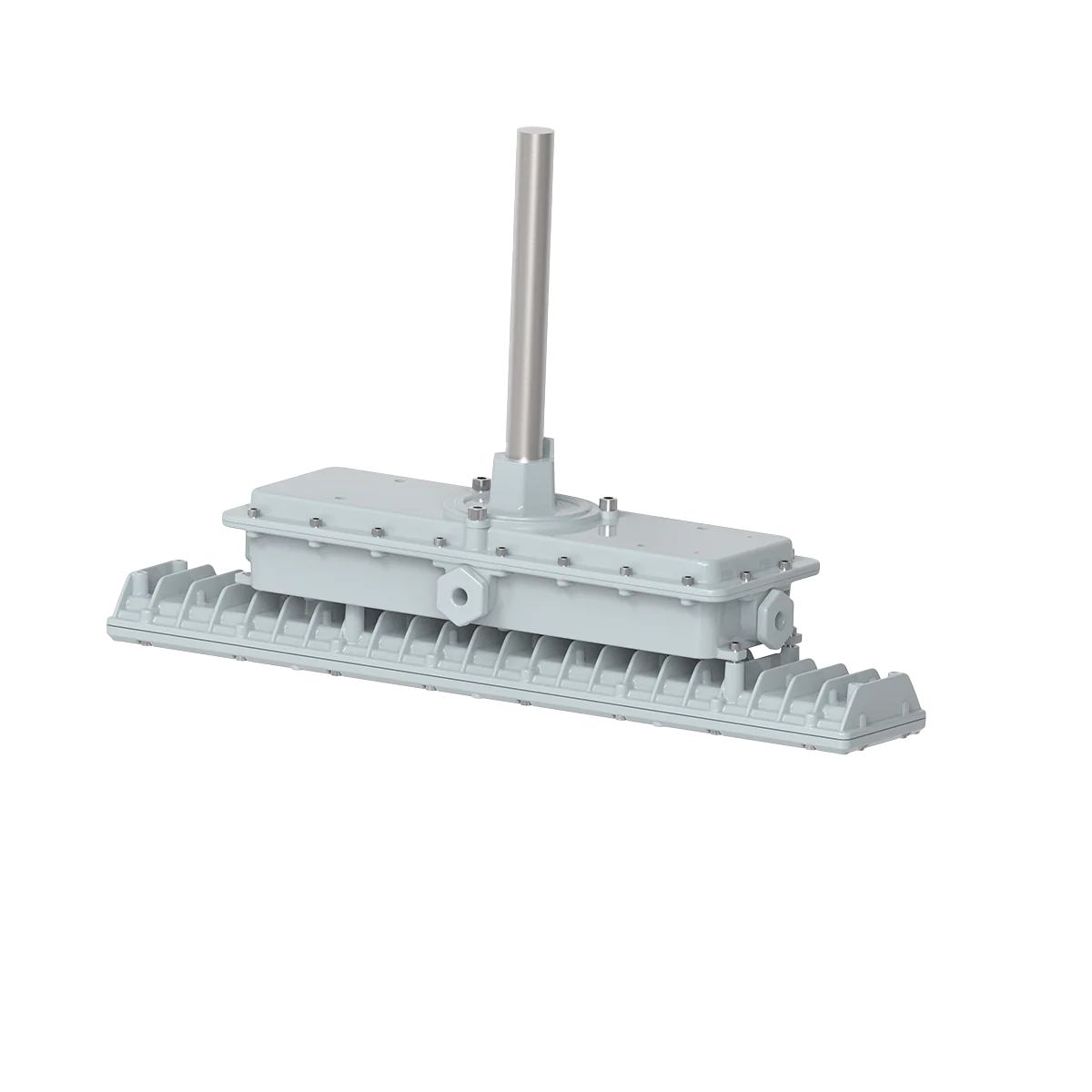

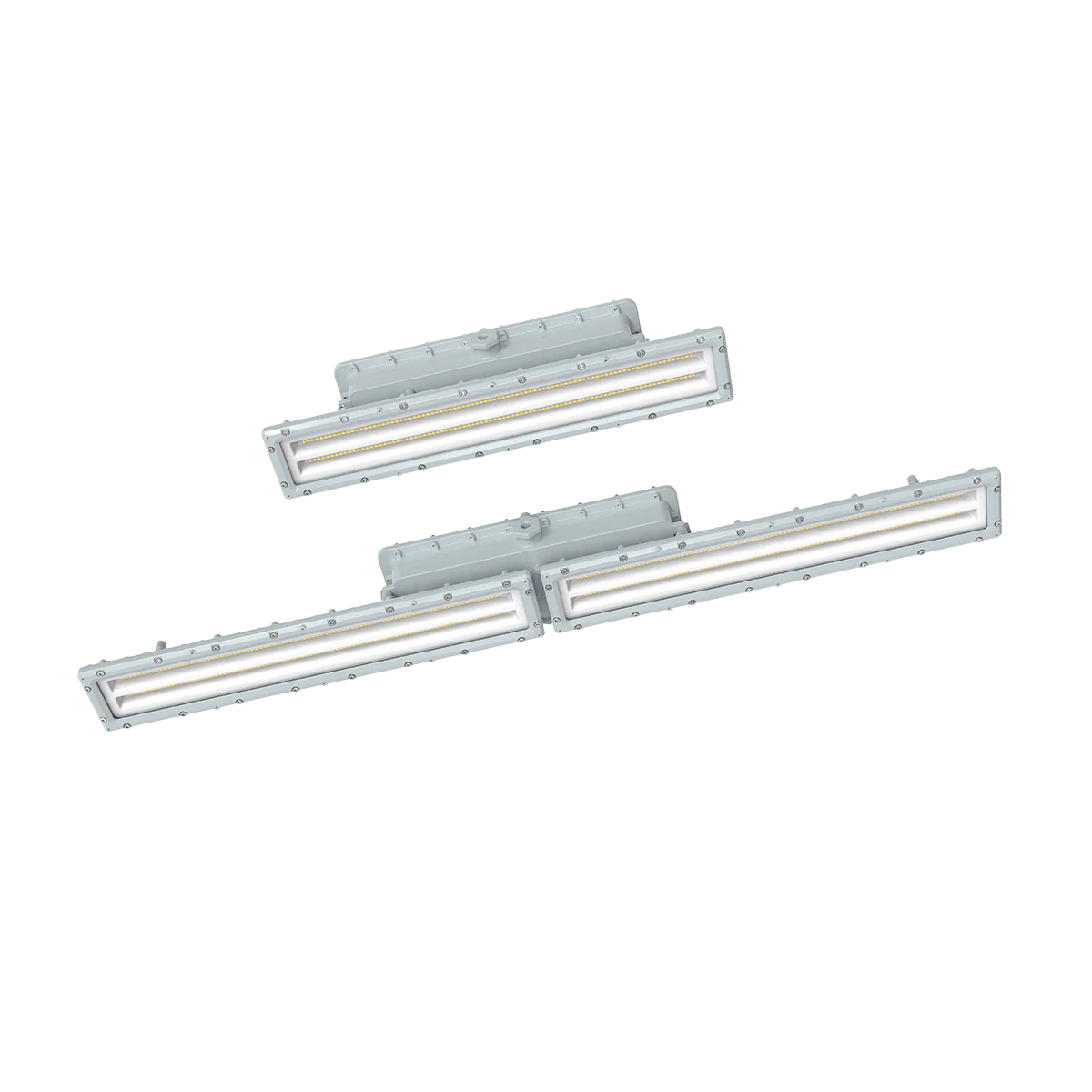

Explosion-proof Linear SP05 (120-347V) CID2 Zone 1/2 T5 Hazardous Locations

For the Canadian Market

FS-SP05 series compact slim linear fixture with an independent LED driverchamber and external airflow heat sinkprovides excellent heat dissipation. Optional0-10V dimming and integrated daylight sensing can provide operating cost savings.

• Class I Division 2 Groups A , B , C , D
• Class II Division 1 Groups E , F , G
• Class II Division 2 Groups F , G
• Class III Division 1 & 2
• Zone 1/2
• Zone 21/22
• IP66

KEY FEATURES
• Temperature classification: T6
• Copper-free aluminum housing
• Superior dual coat finish
• Dimmable available
• Dalight Sensor available
• Microwave Motion Sensor available

CERTIFICATIONS
• cETLus
• cULus 1598
• cULus 8750
• cULus 844
• CSA C22.2 # 250
• CSA C22.2 # 137

MODEL:

FS-SP05

WATTAGE/LUMEN
50
50W / 8170LM
60
60W /9780LM
75
75W / 12320LM
100
100W / 15870LM
120
120W / 19200LM
150
150W / 24438LM

VOLTAGE
U
120-277V
UH
120-347V
H
347V-480V

CCT

3K
3000K
4K
4000K
5K
5000K
57K
5700K

MOUNTING OPTION

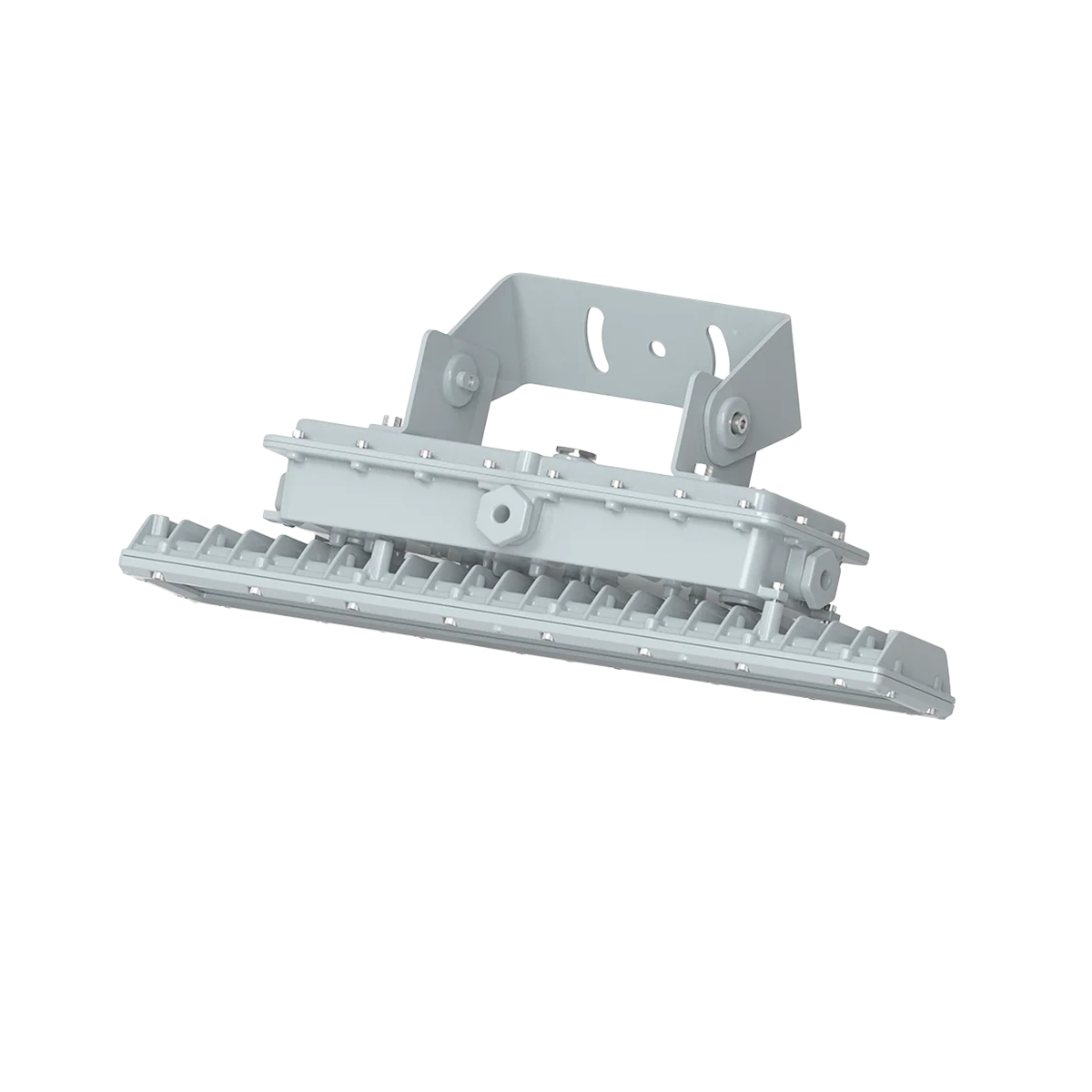

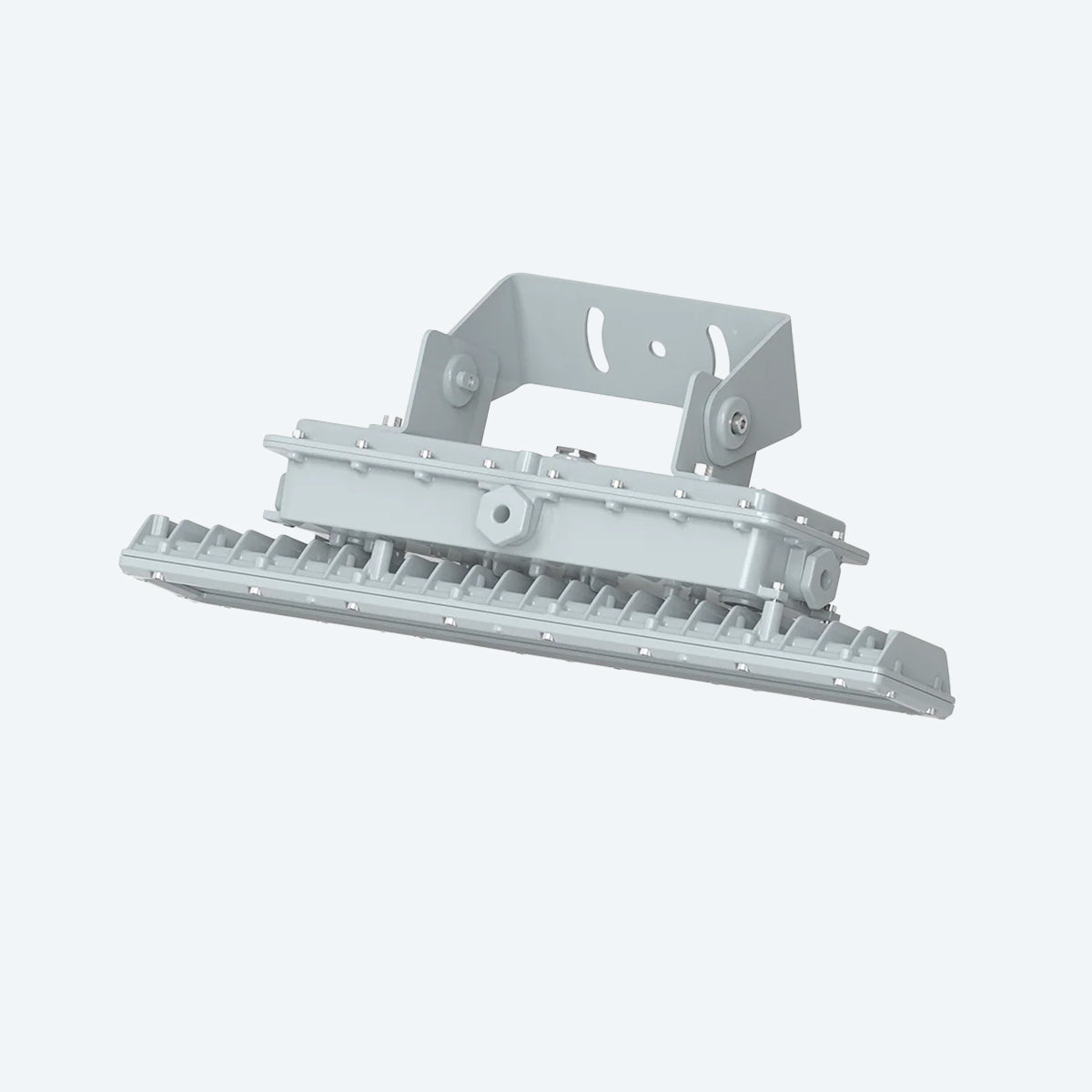

TS
Trunnion Swivel

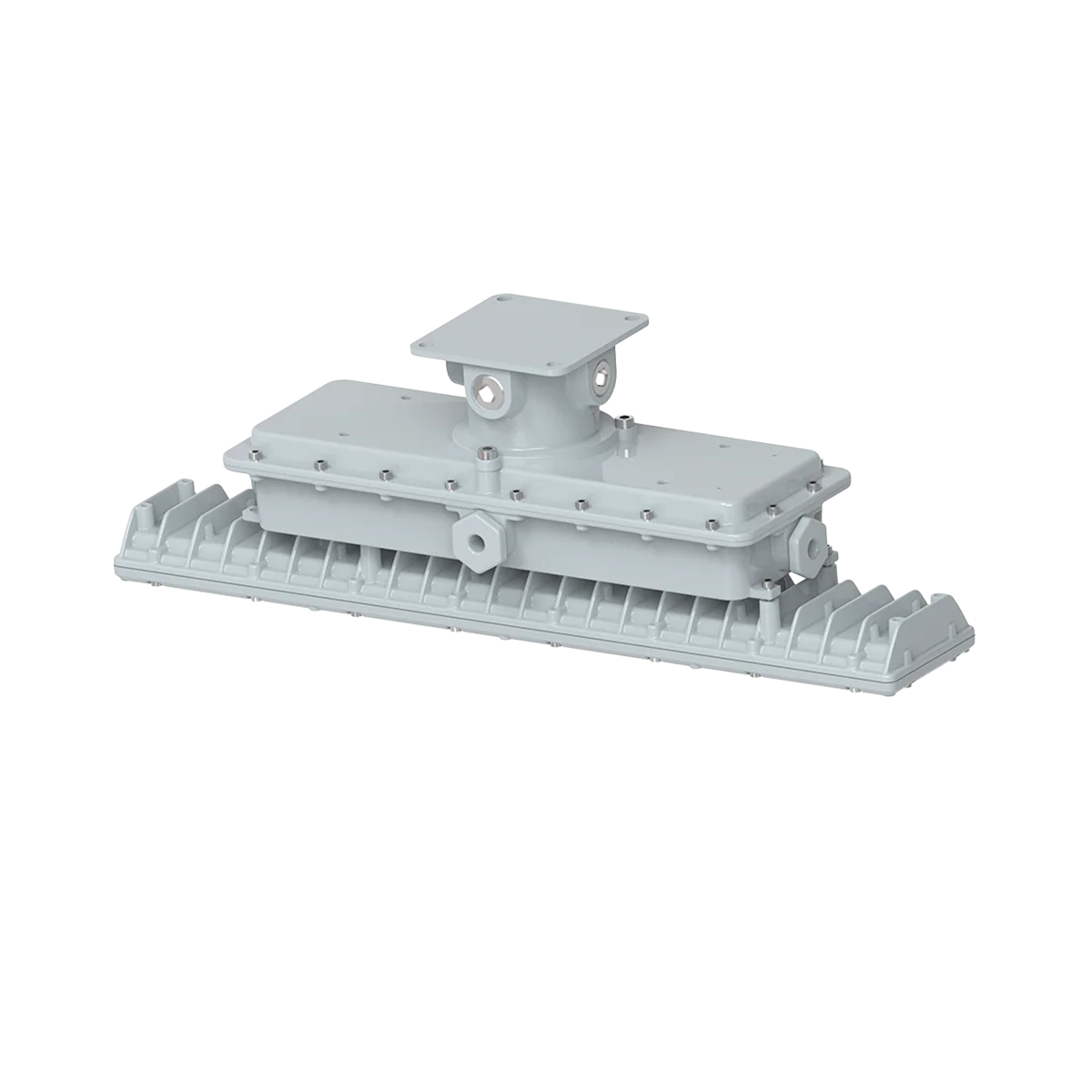

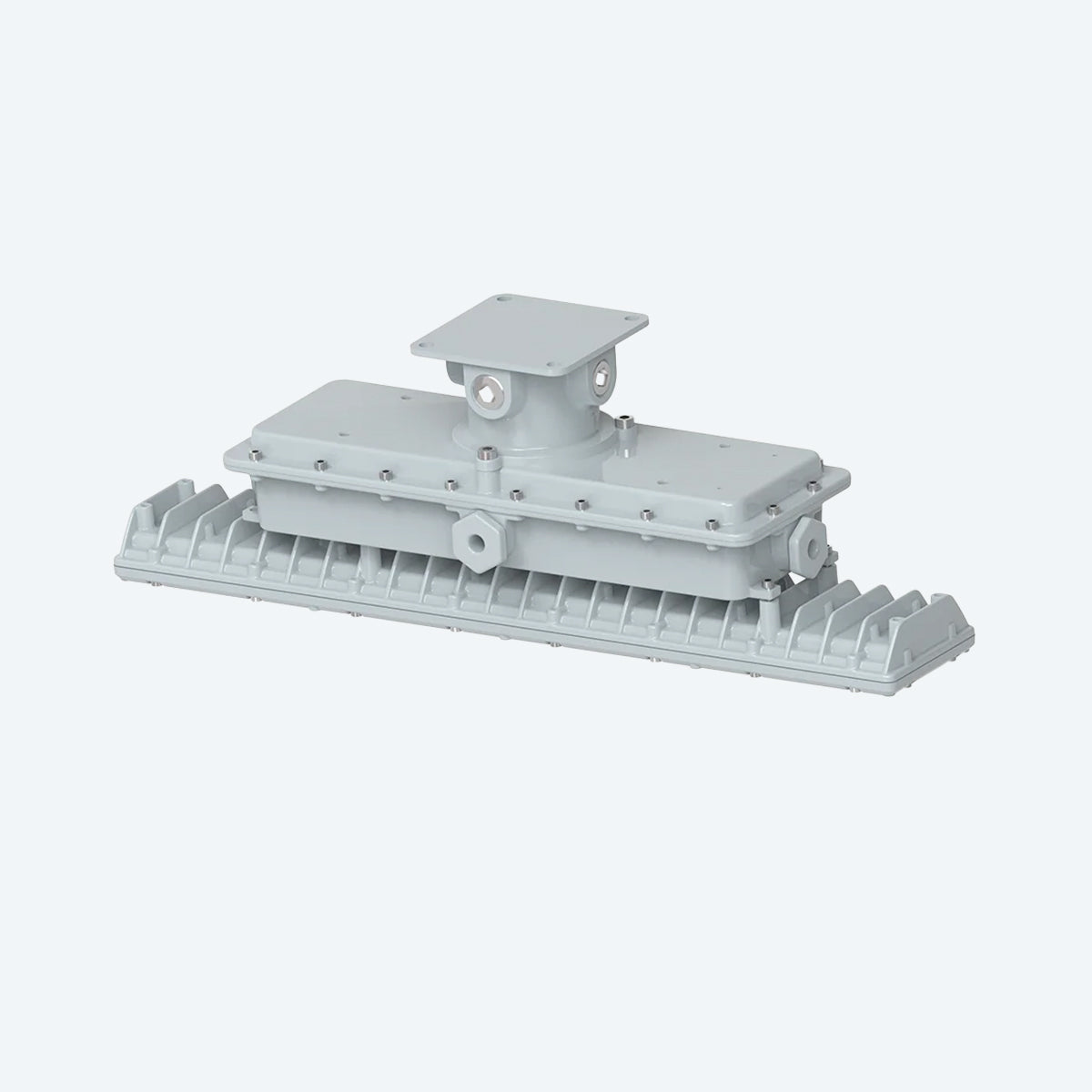

PM
Pendant Mount
CM
Ceiling Mount

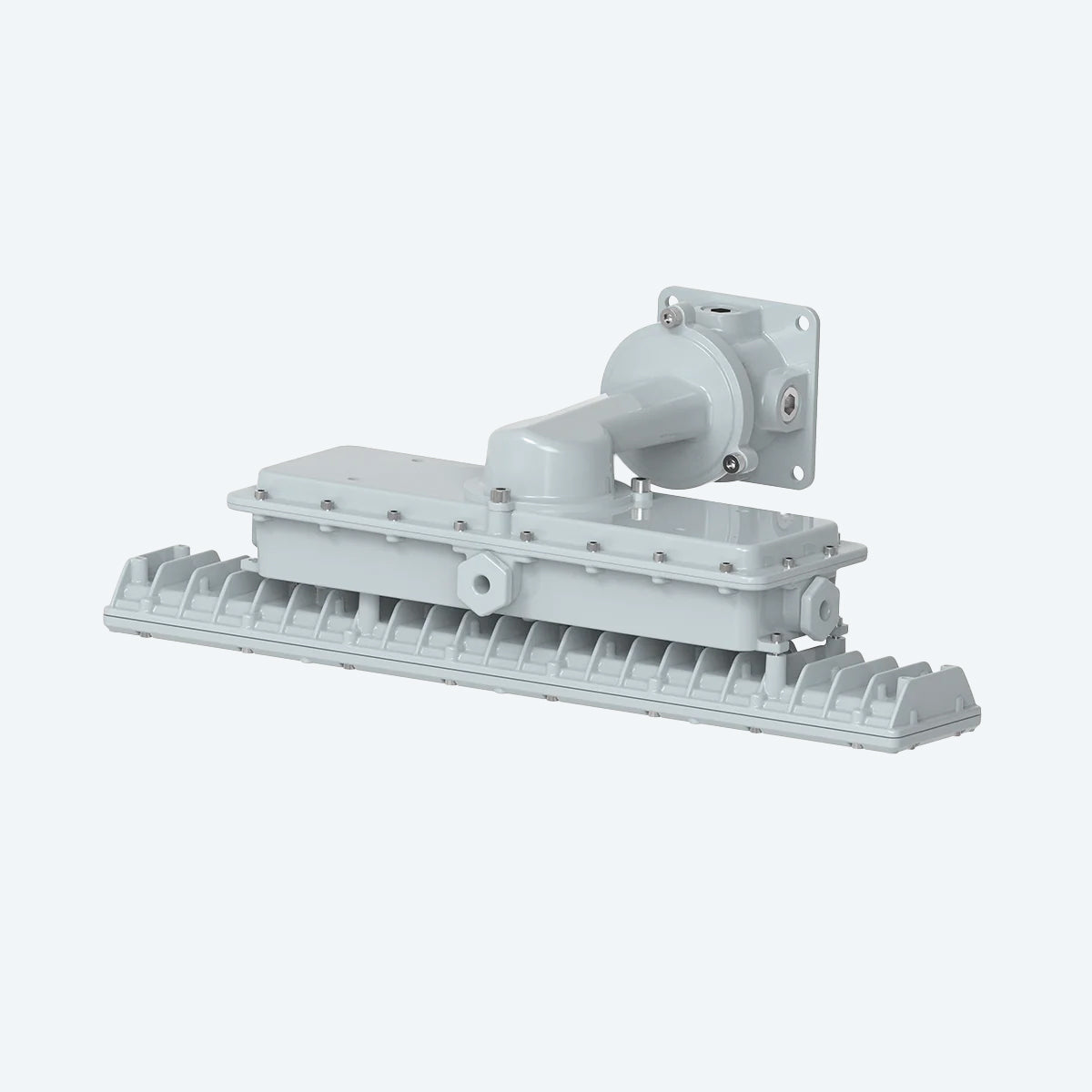

WM
Wall Mount

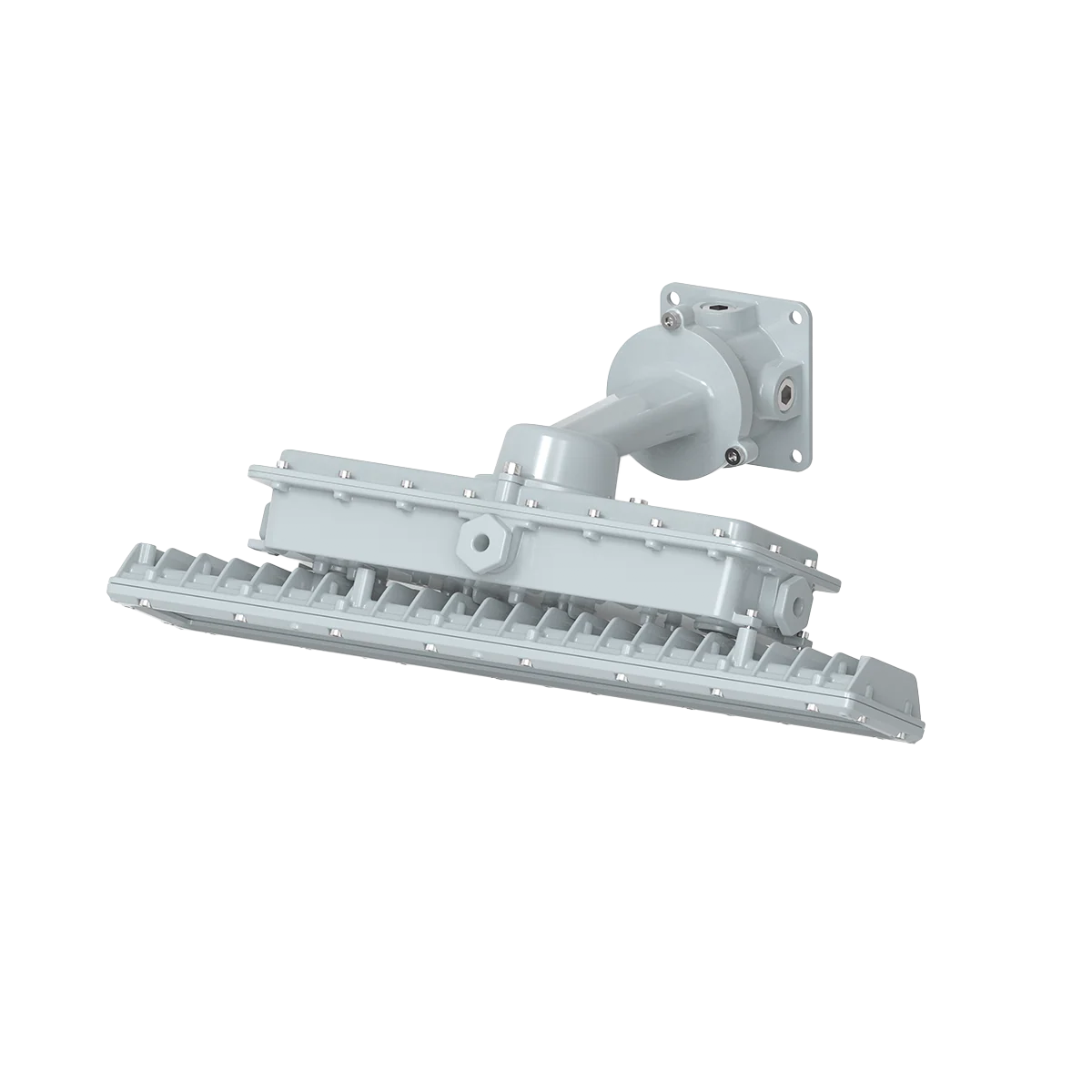

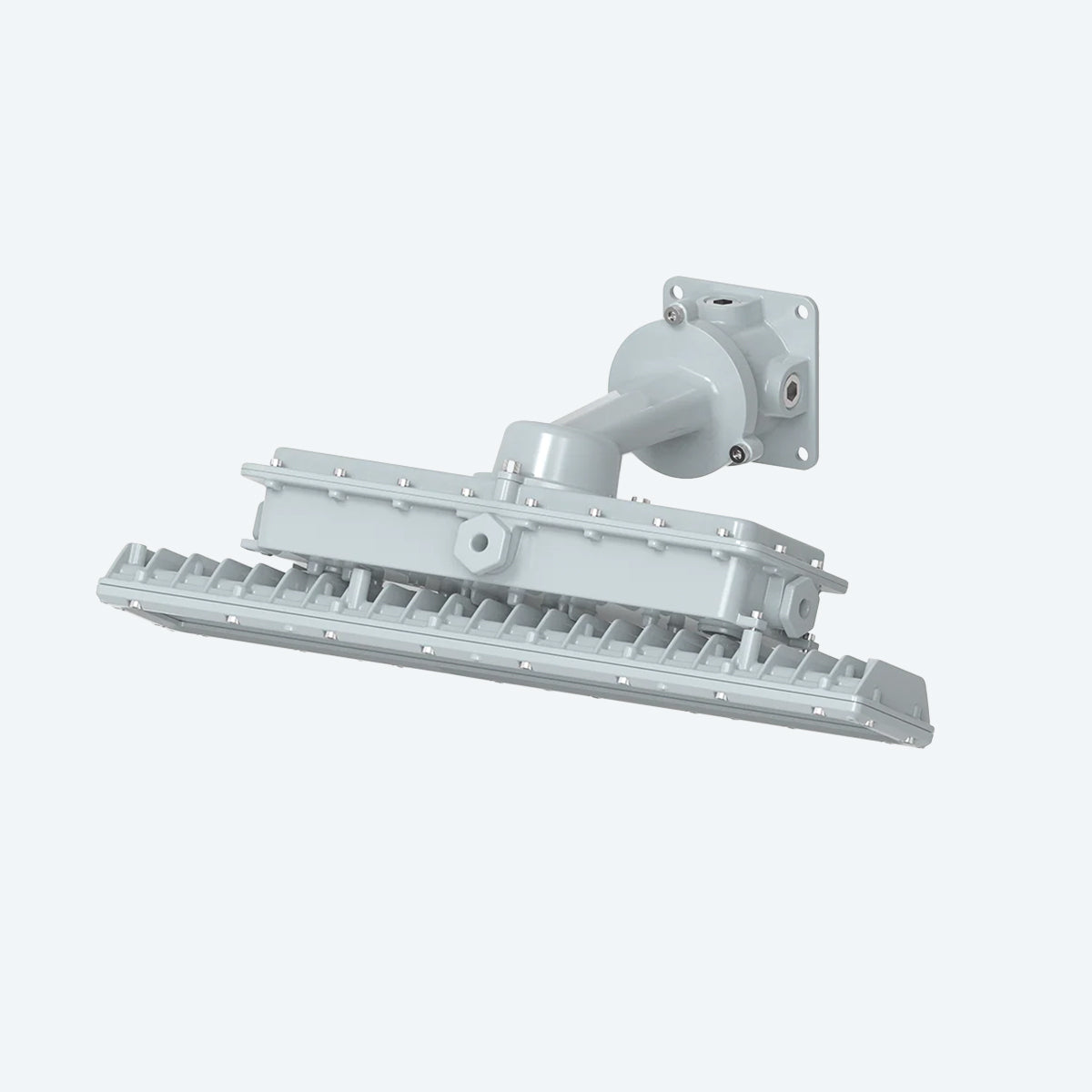

25WM
25° Wall Mount

OPTION
NDM
Non-Dimmable
DM
Dimmable
DS
Daylight Sensor
MS
Microwave Motion Sensor

FIXTURE FINISH COLOUR
Grey

POWER CABLE LENGTH
ST
Standard 6FT (72” 1828mm) black 18/3 cord
CU
Custom Length (feet)

Spec Sheet:

Explosion-proof Linear SP05-Spec-V1.0-2025 -Fotons

IES File:
