Explosion-proof Linear FL0240A (120-347V) CID1 Zone 1/2 T6 Hazardous Locations

For the Canadian Market

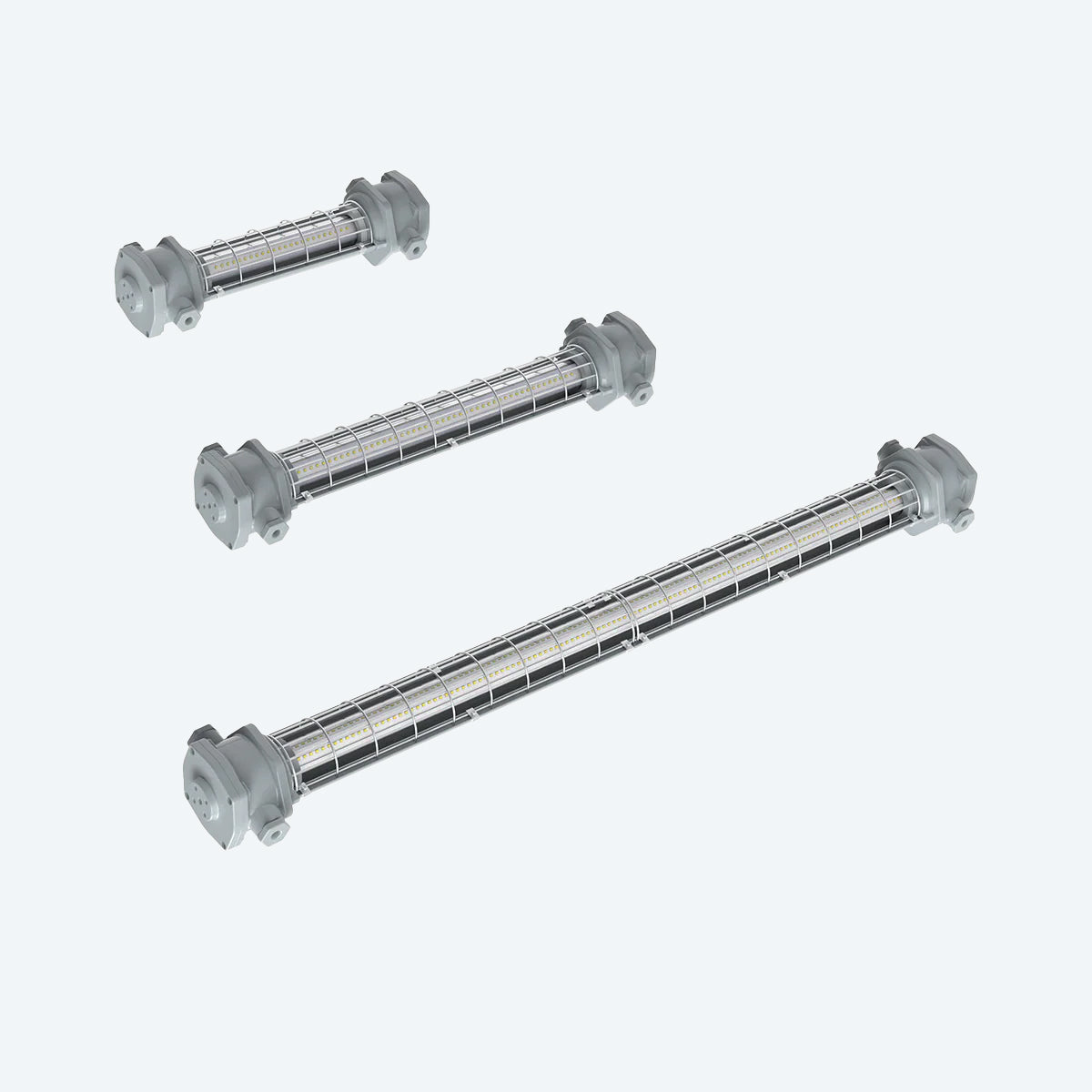

FS-FL0240A LED Linear Fixtureprovides up to 12,000lumens high qualitylight. The LED assembly is protectedbehind a tempered borosilicate glass tuberotected by an steel wire guard to preventfrom accident damage to the light fixture.

RATINGS
• Class I Division 1 Groups C, D
• Class I Division 2 Groups A, B, C , D
• Class II Division 1 Groups E , F , G
• Class II Division 2 Groups F , G
• Class III Division 1 & 2
• Zone 1/2
• Zone 21/22
• IP66

KEY FEATURES
• Temperature classification: T6
• Copper-free aluminum
• Superior dual coat finish
• Dimmable available

CERTIFICATIONS
• cETLus
• cULus 1598
• cULus 8750
• cUL 844
• CSA C22.2 # 250
• CSA C22.2 # 137

MODEL:

FS-FL0240A

WATTAGE/LUMEN
20
20W/2960LM
40
40W/6000LM
80
80W/12000LM

VOLTAGE
U
120-277V
UH
120-347V

COLOUR TEMP.

• 30K 3000K
• 40K 4000K
• 50k 5000k
• 57K 5700K

MOUNTING OPTION

TS
Trunnion Swivel

OPTION
NDM
Non-Dimmable
DM
Dimmable

FIXTURE FINISH COLOUR
Grey

POWER CABLE LENGTH
ST
Standard 6FT (72”  1828mm) black 18/3 cord
CU
Custom Length (feet)

Spec Sheet:

Explosion-proof Linear FL0240A-Spec-V1.0-2025 -Fotons

IES File:
